MA27V0500L

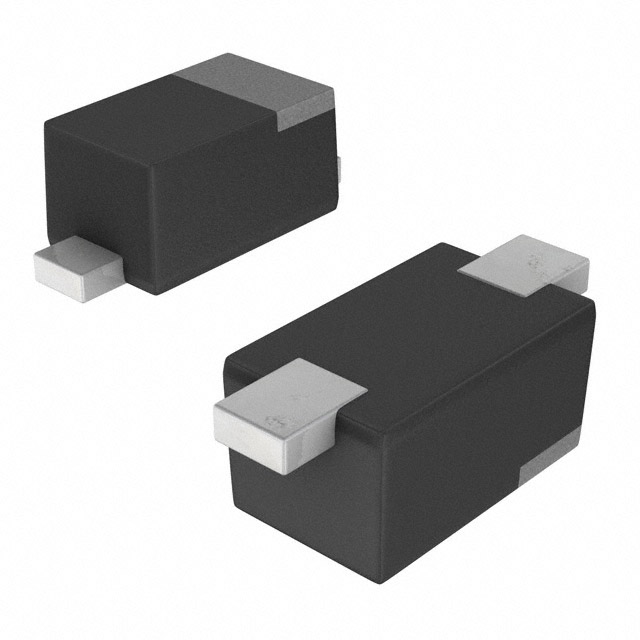

MA27V0500L 变容二极管 10V 18.5pF-20.5pF 4.7 SOD-723/SSSMini marking/标记 5 调谐/良好线性度/高电容率

反向电压VRReverse Voltage| 10V \---|--- 电容值CDiode capacitance| 18.5pF-20.5pF @反向电压VR@Reverse Voltage| 1V 电容值CDiode capacitance| 3.6pF-4.1pF @反向电压VR@Reverse Voltage| 4V 电容比Capacitance ratio| 4.7 Description & Applications| Variable Capacitance Diodes Silicon epitaxial planar type For VCO Good linearity and large capacitance-ratio in CD − VR relation Small series resistance rD SSS-Mini type package, allowing downsizing of equipment and automatic insertion through the taping package 描述与应用| 可变电容 硅外延平面型对于VCO 良好的线性度和大电容率 小串联电阻rD SSS-小型封装，通过编带包装,允许设备的小型化和自动插入
