MA27V1600L

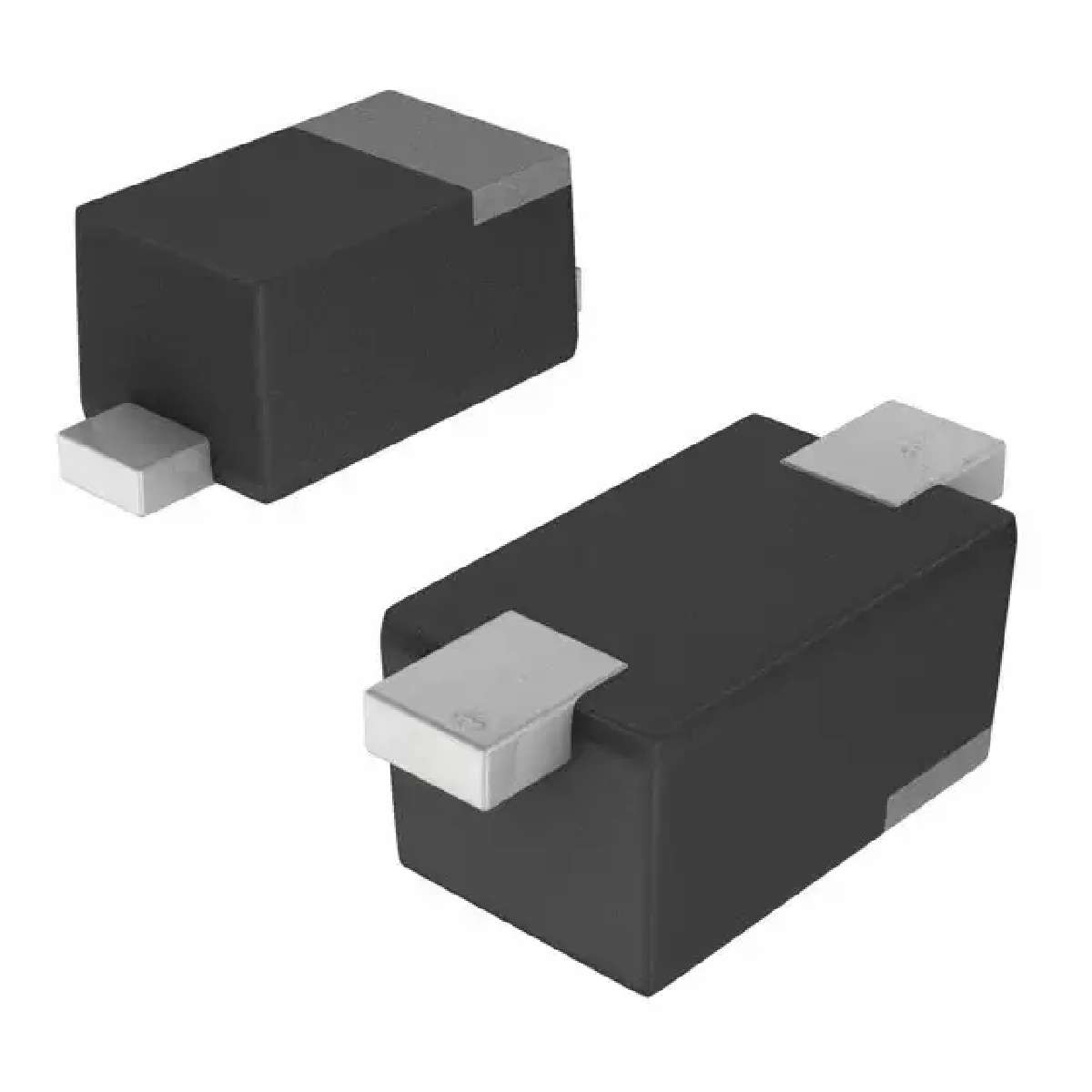

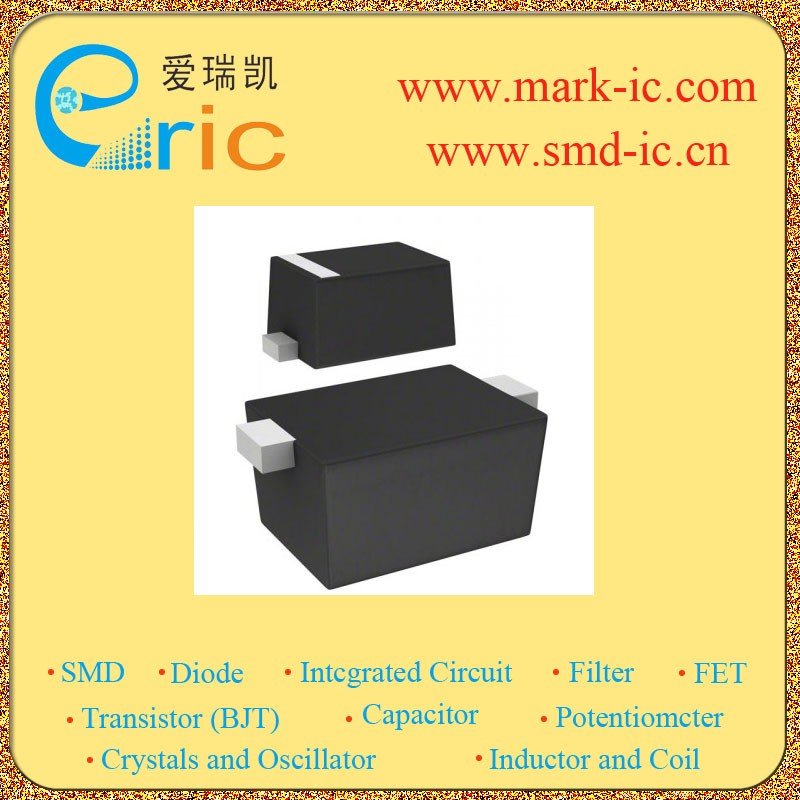

MA27V1600L 变容二极管 6V 17.45pF-18.95pF 2.17-2.35 SOD-723/SSSMini marking/标记 K 调谐/良好线性度/高电容率

反向电压VRReverse Voltage| 6V \---|--- 电容值CDiode capacitance| 17.45pF-18.95pF @反向电压VR@Reverse Voltage| 1V 电容值CDiode capacitance| 7.73pF-8.37pF @反向电压VR@Reverse Voltage| 3V 电容比Capacitance ratio| 2.17-2.35 Description & Applications| Variable Capacitance Diodes Silicon epitaxial planar type For VCO Good linearity and large capacitance-ratio in CD − VR relation High frequency type by this low capacitance Ultraminiature Package 1.0 mm × 0.6 mm height: 0.52 mm，optimum for high-density mounting and high-speed mounting 描述与应用| 可变电容 硅外延平面型对于VCO 用于压控振荡器 良好的线性度和大电容率 低电容高频类型 超小型封装1.0毫米×0.6毫米（高度：0.52毫米），最适合高密度安装和高速安装
