MC21605G6WK-SPTLY

MIDAS  MC21605G6WK-SPTLY  字母数字液晶屏, 16 x 2, 黄绿底黑色字, 5 V, 并行, 英式, 欧式, 半透反射

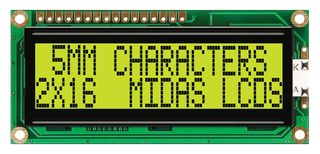

The is a 16-character x 2 lines Alphanumeric LCD with positive transflective polarizer and edge type LED backlight white. It features FSTN silver-gay LCD panel and SUNPLUS controller IC. 192 types of alphanumeric, symbols and special characters can be displayed with the built-in character generator ROM. Various instructions may be programmed such as clear display, cursor at home, on/off cursor, blink character, shift display, shift cursor and read/write display data.

.

6 O"clock Viewing angle bottom

.

1/16 Display duty, 1/5 driving bias

.

Fast response time

.

High contrast

.

3 Times 100% QC examination

.

Protection circuit

.

Long life

.

Anti-UV version

.

Twice selection of LED materials

.

N series technology

.

Low power consumption

.

Interface to an 8-bit or 4-bit MPU is available

.

Other preferred characters can be displayed by character generator RAM

.

Compact and lightweight design which can easily be integrated into end products

.

Overall max dimensions - 80.0 x 36.0 x 11.0mm

.

Viewing area - 64.5 x 16.4mm

.

5mm character actual dimension 3.00 x 5.23mm
