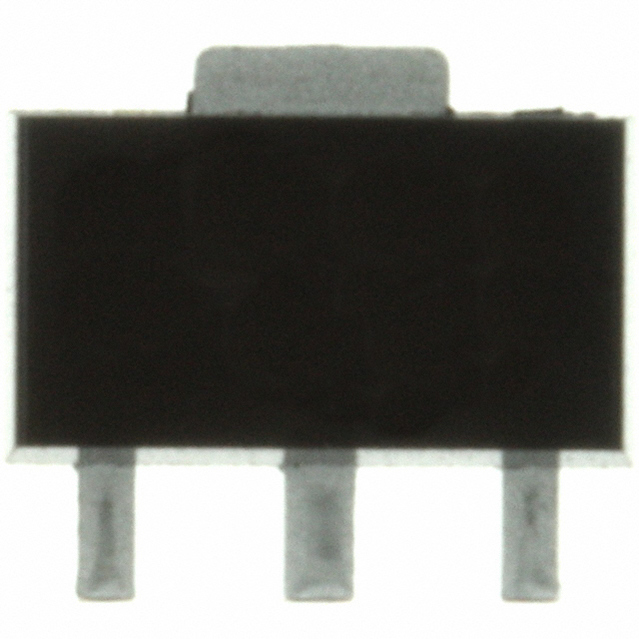

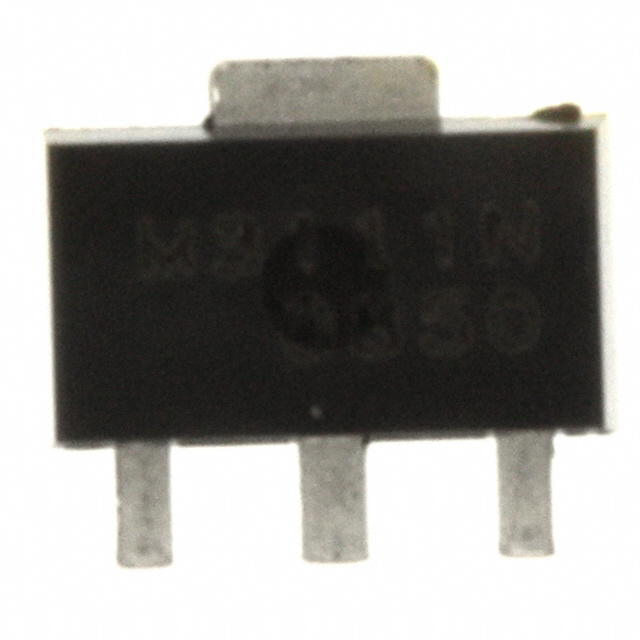

MMG3002NT1

射频放大器 21DBM 20 DB GEN PURP AMP

40-3600 MHz, 20 dB 21 dBm InGaP HBT

Broadband High Linearity Amplifier

The is a General Purpose Amplifier that is internally input and output matched. It is designed for a broad range of Class A, small-signal, high linearity, general purpose applications. It is suitable for applications with frequencies from 40 to 3600 MHz such as Cellular, PCS, BWA, WLL, PHS, CATV, VHF, UHF, UMTS and general small-signal RF.

Features

• Frequency: 40-3600 MHz

• P1dB: 21 dBm

• Power Gain: 20 dB

• Third Order Output Intercept Point: 37.5 dBm

• Single Voltage Supply

• Internally Matched to 50 Ohms

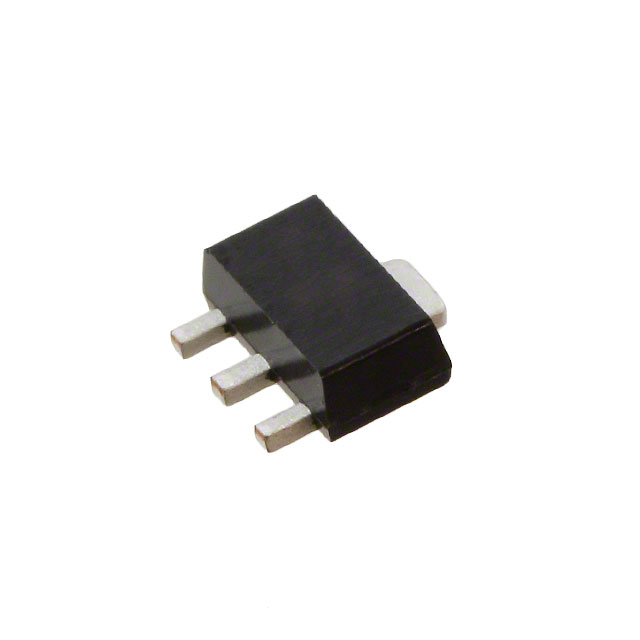

• Low Cost SOT-89 Surface Mount Package

• Pb-Free Leads

• In Tape and Reel. T1 Suffix = 1000 Units per 12 mm, 7 inch Reel.
