MAX2642EXT+T

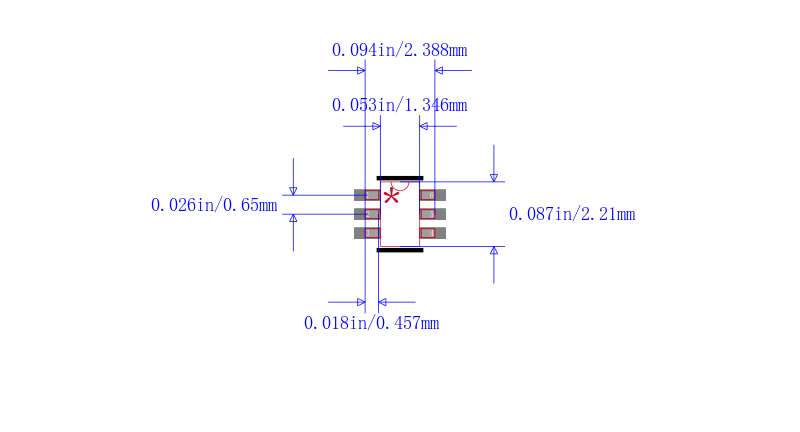

射频放大器, 800MHz至1GHz, 16.7dB增益, 1.3dB噪声, 2.7V至5.5V, SC-70-6

The from Products is a 900MHz SiGe, high IP3, low noise amplifier LNA in 6 pin SC-70 package. This low cost, high third order intercept = point IP3 LNA is designed for applications in cellular, ISM, SMR and PMR systems. It features a programmable bias, allowing IP3 and supply current to be optimized for specific applications. This LNA provides up to 0dBm input IP3 while maintaining a low noise figure of 1.3dB. The gain for this device is typically 17dB. The MAX2642 also features a 13dB attenuation step which extends LNA"s dynamic range. It also features a shutdown mode that minimizes power consumption. On-chip output matching saves board space by reducing the number of external components. The MAX2642 is designed on a low noise, advanced silicon germanium SiGe process technology. Typical applications include 800MHz/900MHz cellular phones, 900MHz cordless phones, 868MHz/900MHz ISM band wireless data and PMR/SMR/LMR.

.

Wide frequency range from 800MHz to 1000MHz, operates from 2.7V to 5.5V single supply

.

High output IP3 and adjustable +17dBm at 5.3mA, +7dBm at 2.8mA

.

Noise figure of 4.3dB low gain mode, input return loss of -18dB low gain mode

.

On-chip output matching, low power shutdown mode

.

Operating supply current of 5.3mA RBIAS=510 ohm, -40 to +85°C, shutdown supply current of 0.2mA

.

Output return loss of -11dB low gain mode, reverse isolation of -17dB low gain mode

.

Gain control voltage input of 0.6V high gain mode, 2V low gain mode

.

Gain control input current of -10µA high gain mode, 50µA low gain mode

.

IP3 of 0dBm RBIAS = 510 ohm, -5dBm RBIAS = 806 ohm, -10dBm RBIAS = 1.1Kohm

.

Operating temperature range from -40°C to +85°C
