MAX14578EETE+

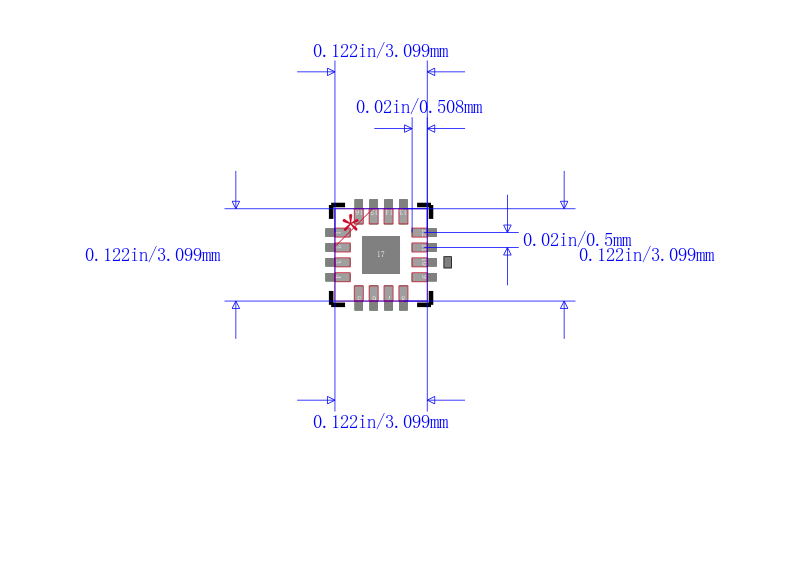

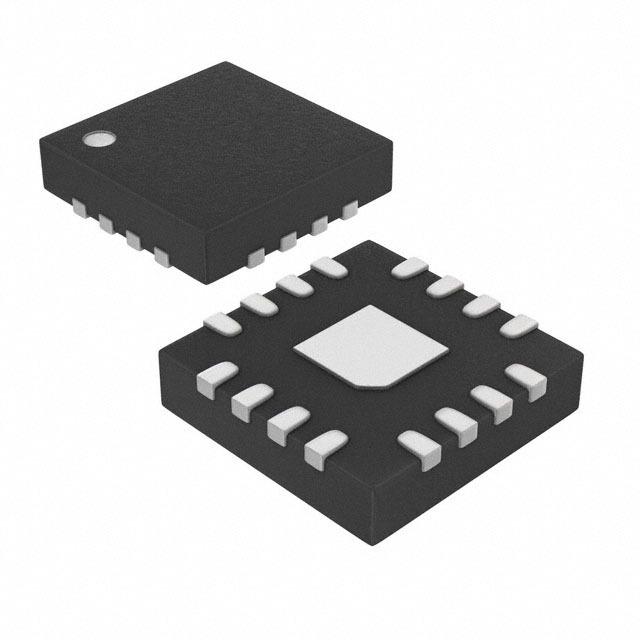

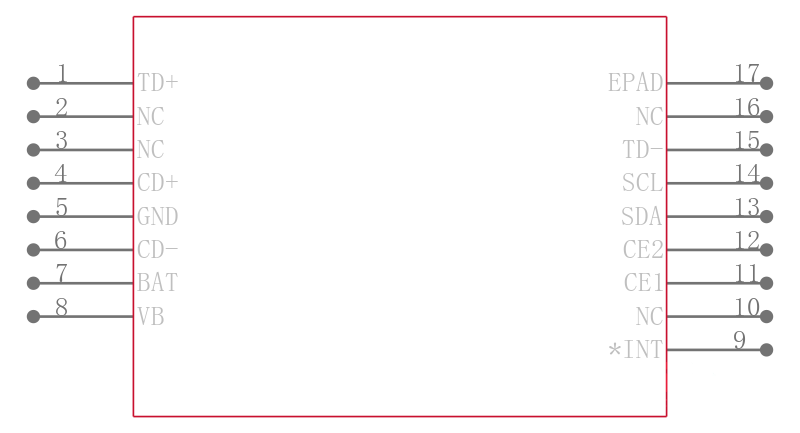

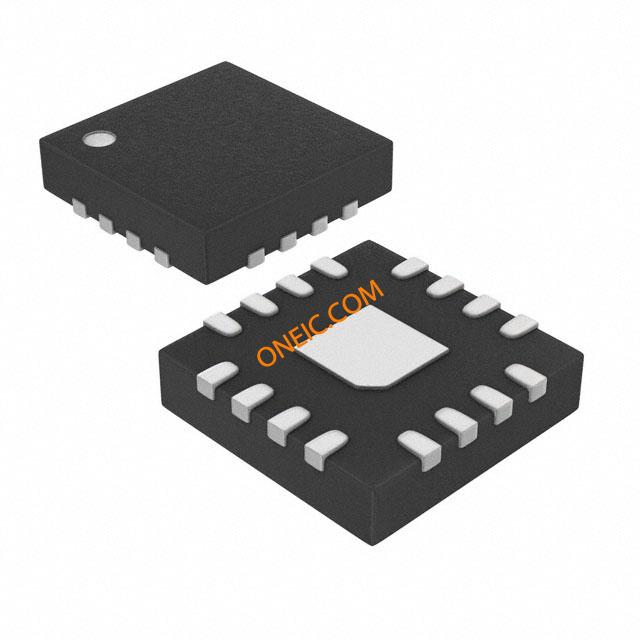

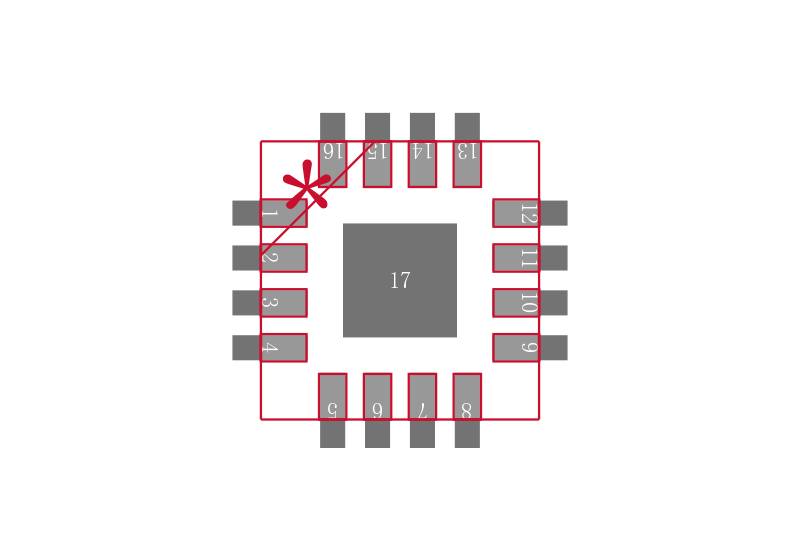

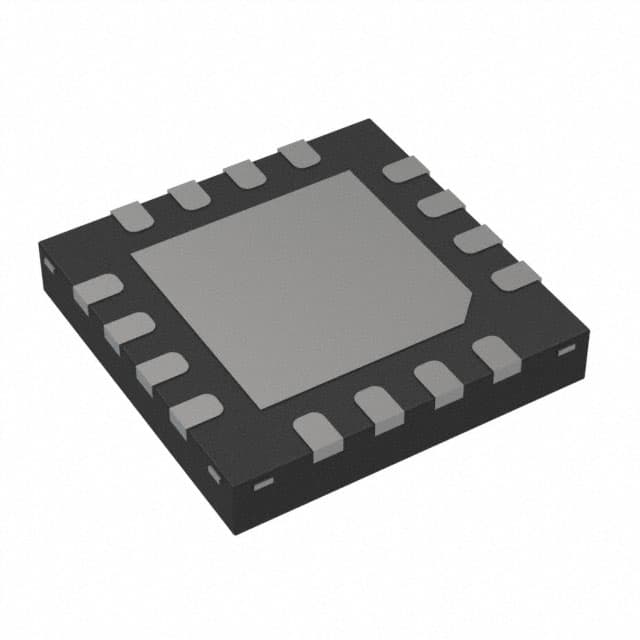

特殊功能芯片, USB电池充电探测器, 2.8V至5.5V输入, TQFN-16

The is an USB battery charger detector in 16 pin TQFN package. The USB charger-detection circuitry detects USB standard downstream ports SDPs, USB charging downstream ports CDPs or dedicated charger ports DCPs and controls an external lithium-ion Li+ battery charger. The device implement USB battery charging revision1.1-compliant detection logic including data contact detection, D+/D- short detection, charging downstream port identification. The internal USB switch is compliant to Hi-Speed USB, full-speed USB and low-speed USB signals. The device feature low on-resistance, low on-resistance flatness and very low capacitance. The device also features high-ESD protection up to ±15KV human body model on the CD+ and CD- pins. In addition, the device feature Apple and Sony charger detection that allows identification of resistor-divider networks on D+/D-.

.

Supply voltage range is 2.8V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

China YD/T1591 compliant charger detection

.

Internal switches isolate the USB transceiver during the charger detection process

.

VBUS connection capable of 28V

.

Device status change interrupt

.

Low supply current of 1µA at VBAT = +3.6V

.

±8KV IEC 6100-4-2 contact discharge
