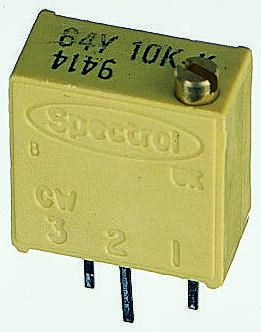

VISHAY M64Y204KB40 微调器,24转 200K
The Vishay 64 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn, small size with PC board mounting. Available in five versions P, W, X, Y, Z which differ by the position of the control screw in relation to the PC board plane and by the spacing of the terminals. Excellent operational stability is provided by the use of a cermet element.
额定电压DC 300 V
容差 ±10 %
额定功率 500 mW
电阻 200 KΩ
阻值偏差 ±10 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Through Hole
长度 9.7 mm
宽度 5 mm
高度 11.1 mm
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
包装方式 Bulk
制造应用 Industrial, 便携式器材, 工业, 消费电子产品, Consumer Electronics, Portable Devices, 电源管理, Power Management
RoHS标准 Non-Compliant
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M64Y204KB40 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
3299Y-1-204LF 伯恩斯 | 功能相似 | M64Y204KB40和3299Y-1-204LF的区别 |
