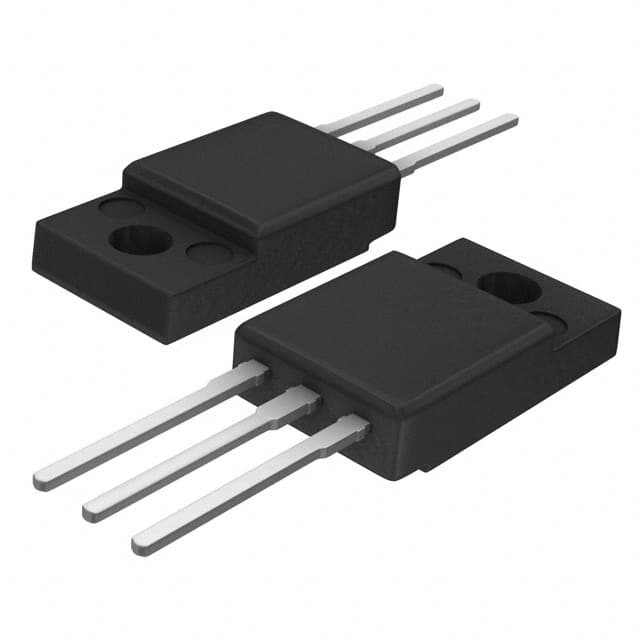

MJF15031

互补功率晶体管 Complementary Power Transistors

Complementary Power Transistors For Isolated Package Applications

Designed for general−purpose amplifier and switching applications, where the mounting surface of the device is required to be electrically isolated from the heatsink or chassis.

Features

•Electrically Similar to the Popular MJE15030 and MJE15031

•150 VCEOsus

•8 A Rated Collector Current

•No Isolating Washers Required

•Reduced System Cost

•High Current Gain−Bandwidth Product − fT= 30 MHz Min @ IC = 500 mAdc

•UL Recognized, File #E69369, to 3500 VRMS Isolation

•Pb−Free Packages are Available

.
