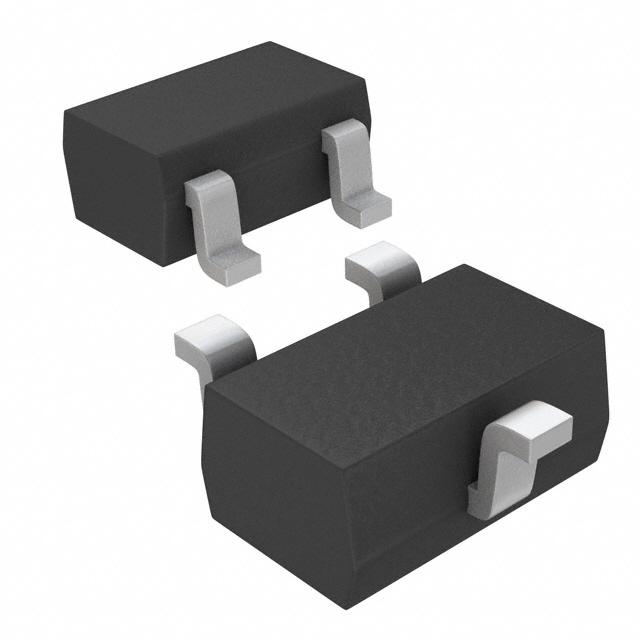

MAX6383XR46D3+T

MAXIM INTEGRATED PRODUCTS  MAX6383XR46D3+T  芯片, 微处理器监控器, 5.5V, SC-70-3

The is a single low voltage, low power microprocessor µP reset circuit in 3 pin SC-70 package. This microprocessor µP supervisory circuit monitors power supply voltage ranging from +1.8V to +5V while consuming only 3µA of supply current at +1.8V. Whenever VCC falls below the factory-set reset thresholds, the reset output asserts and remains asserted for a minimum reset timeout period after VCC rises above the reset threshold. It has an open-drain active-low reset output. Typical application includes controllers, intelligent instruments, critical microprocessor µP and microcontroller µC power monitoring and battery powered equipment.

.

Supply voltage range is 1V to 5.5V

.

Operating temperature range from -40°C to 125°C

.

Reset threshold voltage is 4.63V

.

Reset threshold accuracy is ±2.5%

.

Reset timeout delay is 280ms

.

Reset output state is valid to VCC = 1V

.

Negative going VCC transient immunity

.

Low power consumption of 6µA at +3.6V
