MAX6864UK23D3S+T

MAXIM INTEGRATED PRODUCTS  MAX6864UK23D3S+T  芯片, 微处理器监控器, 5.5V, SOT-23-5

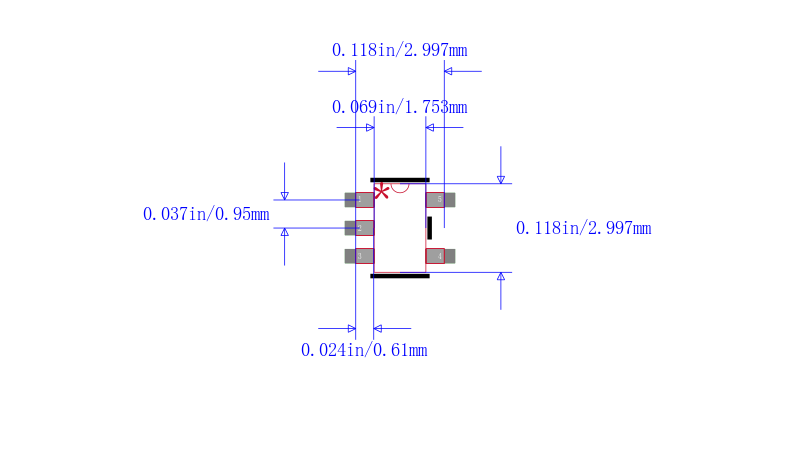

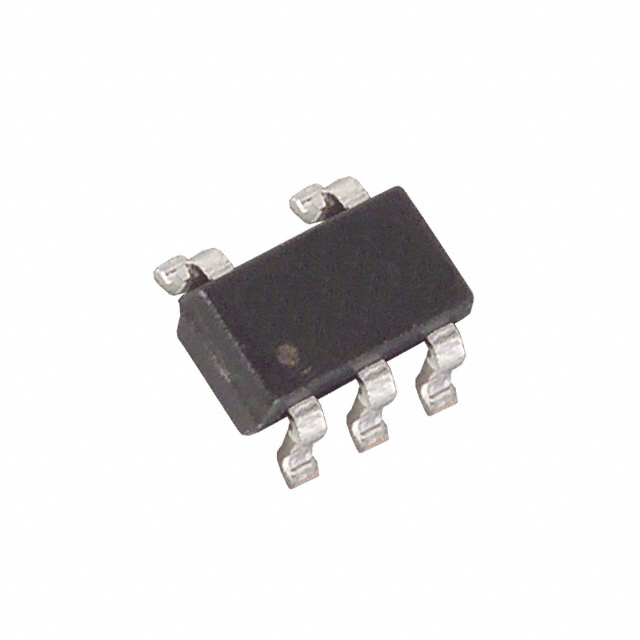

The is a nanopower microprocessor µP supervisory circuit with manual reset input and watchdog timer in 5 pin SOT-23 package. This microprocessor µP supervisory circuit combines voltage monitoring, watchdog timer and manual reset input functions. The device asserts a reset signal whenever the monitored voltage drops below factory trimmed reset threshold voltage, manual reset is asserted or watchdog timer expires. The reset output remains asserted for a minimum timeout period after VCC rises above the reset threshold and manual reset is deasserted. The watchdog timer monitors activity at the WDI input to prevent code execution errors.

.

Supply voltage range from 1.2V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Active-low, push-pull reset output

.

Ultra low supply current of 170nA at VCC = 1.8V

.

Immune to short VCC transients

.

Reset valid to VCC = +1.1V

.

No external components are required

.

Threshold voltage of 2.313V and reset timeout period of 225ms

.

Watchdog timeout period is 3.3s
