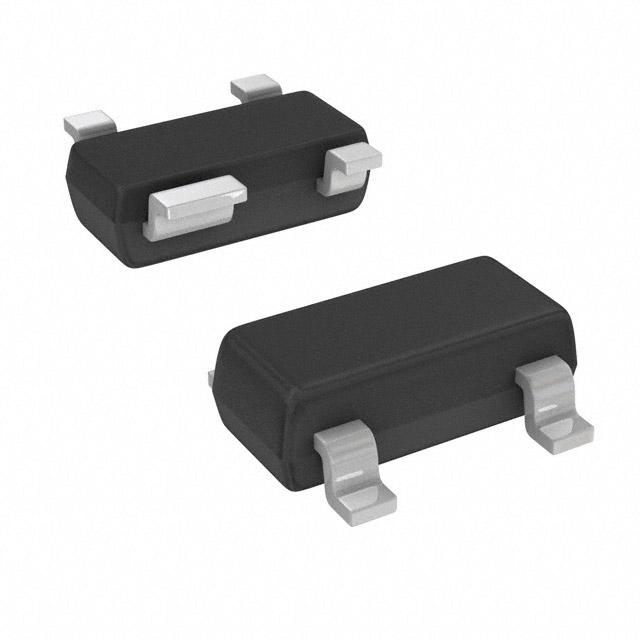

MAXIM INTEGRATED PRODUCTS MAX6315US26D1+T 芯片, 微处理器监控器, 5.5V, SOT-143-4
The is a low power, open drain CMOS microprocessor µP reset circuit in 4 pin SOT-143 package. This supervisory circuit is designed to monitor power supplies in µP and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments. The MAX6315 also provides a debounced manual reset input. This device performs a single function that is it asserts a reset signal whenever VCC supply voltage falls below preset threshold or whenever manual reset is asserted. Reset remains asserted for an internally programmed interval reset timeout period after VCC has risen above the reset threshold or manual reset is deasserted. The open drain complementary RESET output of MAX6315 can be pulled-up to a voltage higher than VCC. It is used in computers, controllers, intelligent instruments, critical µP and µC power monitoring and battery powered equipment.
电源电压DC 1.00V min
针脚数 4
耗散功率 320 mW
阈值电压 2.63 V
复位电压Min 2.58 V
复位电压Max 2.68 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
长度 2.92 mm
宽度 1.3 mm
高度 0.94 mm
封装 TO-253-4
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Portable Devices, 系统监控, System Monitoring, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX6315US26D1+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX6315US26D1-T 美信 | 完全替代 | MAX6315US26D1+T和MAX6315US26D1-T的区别 |
