MAX809SEUR+T

微处理器复位电路，阀值电压=2.93V

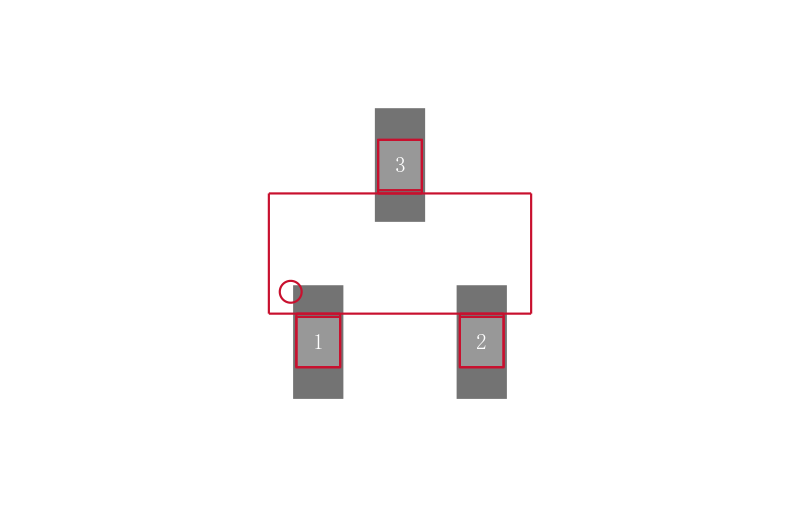

The is a three pin microprocessor supervisory circuit in SOT-23 package. This device is used to monitor power supplies in microprocessor and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3V or +2.5V powered circuits. The MAX809S performs a single function. It asserts reset signal whenever VCC supply voltage declines below preset threshold keeping it asserted for 140ms after VCC has risen above reset threshold.

.

Reset threshold voltage of 2.93V

.

Fully specified over temperature

.

Active low push pull RESET\ output

.

Reset active timeout period of 240ms

.

12µA supply current

.

Guaranteed reset valid to VCC = +1V

.

Power supply transient immunity

.

Operating temperature range from -40°C to 105°C

.

Supply voltage range from 1.2V to 5.5V
