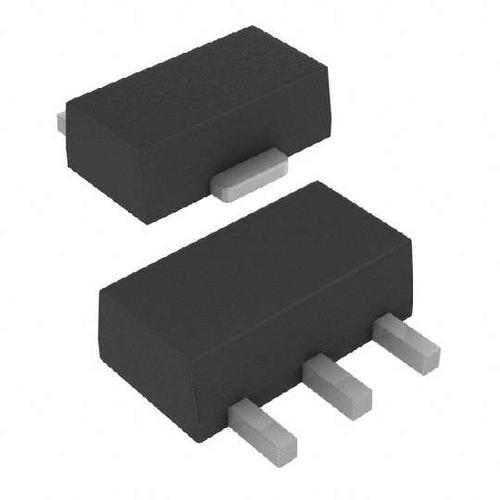

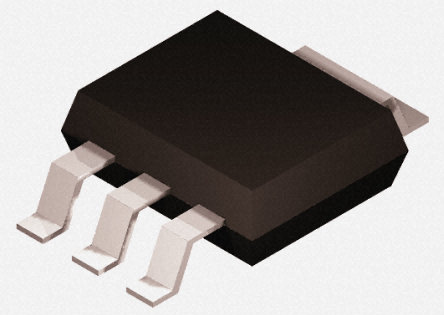

MICROCHIP MCP1826S-2502E/DB 固定电压稳压器, LDO, 2.3V至6V, 250mV压差, 2.5V输出, 1A输出, SOT-223-3
The is a 2.5V fixed output low-dropout LDO Linear Regulator provides high current and low output voltage. The device is stable using ceramic output capacitors that inherently provide lower output noise and reduce the size of the entire regulator solution. Only 1µF of output capacitance is needed to stabilize the LDO. Using CMOS construction, the quiescent current consumed by the device is typically less than 120µA over the entire input voltage range.
- .
- 0.5% Typical output voltage tolerance
- .
- Fast response to load transients
- .
- Short circuit current limiting and overtemperature protection
容差 2 %
输出接口数 1
输入电压DC 2.30V min
输出电压 2.5 V
输出电流 1 A
针脚数 3
静态电流 220 µA
输出电容类型 Ceramic
跌落电压 250 mV
输入电压Max 6 V
输入电压Min 2.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
长度 6.7 mm
宽度 3.7 mm
高度 1.7 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, 车用, Industrial, Communications & Networking, 电源管理, Computers & Computer Peripherals, Power Management, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP1826S-2502E/DB Microchip 微芯 | 当前型号 | 当前型号 |
MIC39100-2.5WS 微芯 | 类似代替 | MCP1826S-2502E/DB和MIC39100-2.5WS的区别 |
MCP1826ST-2502E/DB 微芯 | 类似代替 | MCP1826S-2502E/DB和MCP1826ST-2502E/DB的区别 |
MIC39100-2.5WS TR 微芯 | 功能相似 | MCP1826S-2502E/DB和MIC39100-2.5WS TR的区别 |
