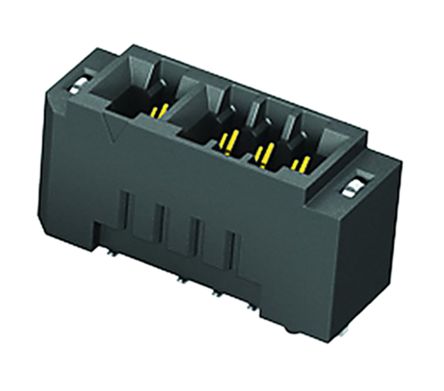

MEC2-40-01-L-DV-WT

SAMTEC  MEC2-40-01-L-DV-WT  连接器, MEC2系列, 卡边缘, 80 触点, 插座, 2 mm, 表面安装

2.00mm MEC2 系列微型边缘卡插座

2.00mm MEC2 系列印刷电路板微型边缘卡插座提供 28+ Gbps 解决方案和双排设计，可接受多达 100 个极化镀金触点。 这些 2.00mm MEC2 系列微型边缘卡插座采用印刷电路板垂直安装，带有印刷电路板校准引脚，可接受 1.60mm 和 2.36mm 厚的卡。 此外，这些 2.00mm MEC2 微型边缘卡插座具有焊接插片选项，此为 2.36mm 厚度的卡标配，在 1.60mm 厚度的卡上可选。

欧时:
Samtec MEC2 系列 2mm 节距 2 行 80 路 直向 SMT 母 边缘连接器 MEC2-40-01-L-DV-WT

e络盟:
SAMTEC  MEC2-40-01-L-DV-WT  连接器, MEC2系列, 卡边缘, 80 触点, 插座, 2 mm, 表面安装

艾睿:
Simply connect the male side of an already manufactured printed circuit to Samtec&s;s MEC2-40-01-L-DV-WT smart card connector to allow for a cost saving connection. This F connector&s;s 80 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a maximum voltage rating of 238 VAC. This is a 2-row connector. It has a female type gender. This device has a maximum current rating of 3.5 A/contact. This product is 8.78 mm tall. MEC2-40-01-L-DV-WT is housed in black liquid crystal polymer. It uses the solder termination method. This card edge connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Card Edge F 80 POS 2mm Solder ST SMD
