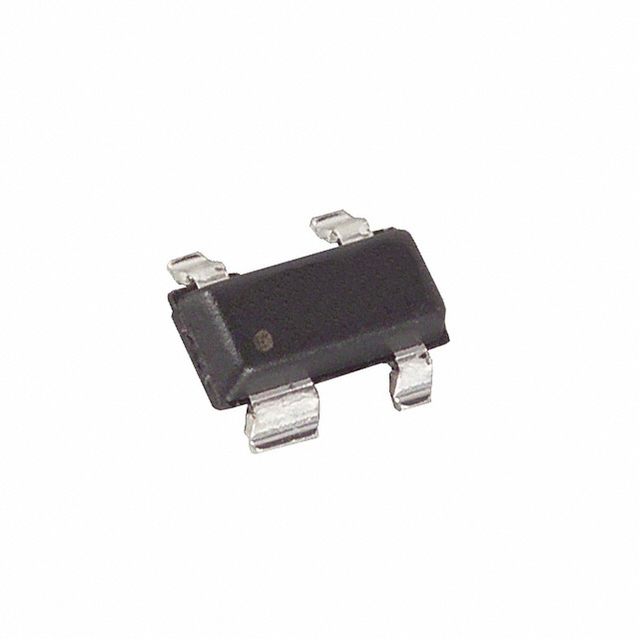

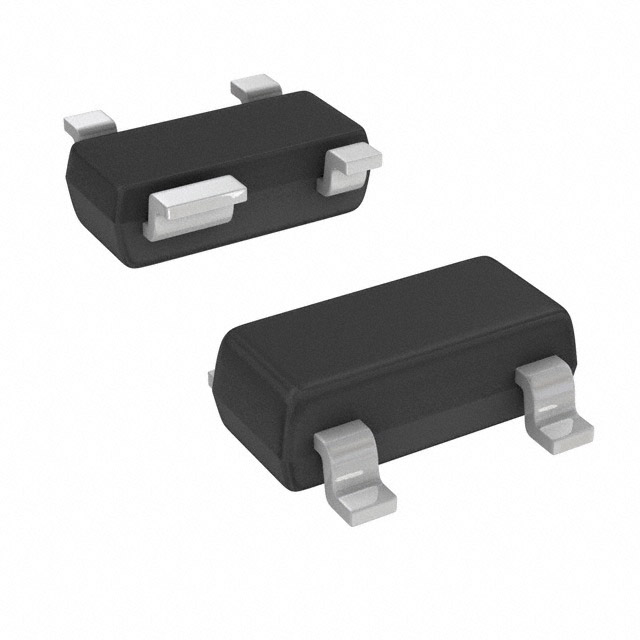

MAXIM INTEGRATED PRODUCTS MAX821LUS+T 芯片, 微处理器监控器, 5.5V, SOT-143-4
The is a microprocessor µP voltage monitor with pin selectable power-on reset timeout delay in 4 pin SOT-143 package. This supervisory circuit monitors power supplies in µP and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5V powered or 3V powered circuits. The MAX821 performs a single function that is it asserts a reset signal whenever the VCC supply voltage falls below a preset threshold and they keep reset asserted for the pin selected reset timeout delay after VCC has risen above the reset threshold. The reset comparator is designed to ignore fast transients on VCC. Low supply current makes the MAX821 as ideal device for use in computers, controllers, intelligent instruments, critical µP and µC power monitoring and battery powered equipments.
电源电压DC 1.20V min
额定功率 320 mW
输出电流 20 mA
针脚数 4
耗散功率 320 mW
阈值电压 4.63 V
复位电压Min 4.56 V
复位电压Max 4.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压 1.5.5 VDC
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
长度 2.92 mm
宽度 1.3 mm
高度 0.94 mm
封装 TO-253-4
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 系统监控, Portable Devices, Consumer Electronics, 消费电子产品, 便携式器材, System Monitoring
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX821LUS+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX821SUS+T 美信 | 类似代替 | MAX821LUS+T和MAX821SUS+T的区别 |
MAX821TUS+T 美信 | 类似代替 | MAX821LUS+T和MAX821TUS+T的区别 |
