ISOCOM MOC8101X 光电耦合器, 晶体管输出, 1通道, DIP, 6 引脚, 60 mA, 5.3 kV
DESCRIPTION

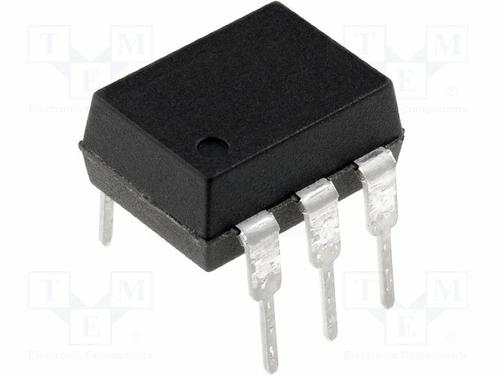

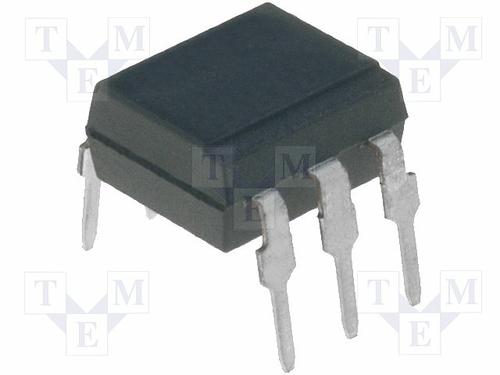

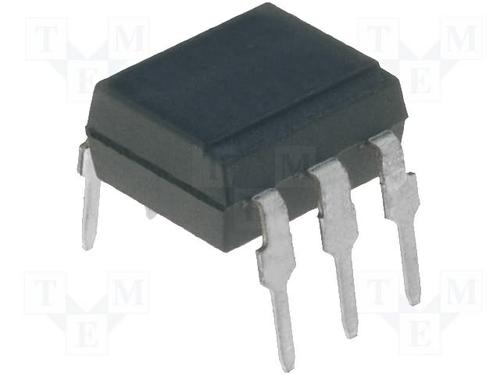

The MOC8101, MOC8102, MOC8103, MOC8104, MOC8105 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package with the base pin unconnected.
FEATURES
• Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.
• High Isolation Voltage 5.3kVRMS,7.5kVPK
• Base pin unconnected for improved noise immunity in high EMI environment
APPLICATIONS
• DC motor controllers
• Industrial systems controllers
• Signal transmission between systems of different potentials and impedances
上升/下降时间 2 µs
输出电压 30.0 V
通道数 1
针脚数 6
正向电压 1.15 V
输入电流 10 mA
耗散功率 200 mW
上升时间 2 µs
隔离电压 5.3 kV
正向电流 60 mA
输出电压Max 30 V
正向电压Max 1.5 V
正向电流Max 60 mA
下降时间 2 µs
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
安装方式 Through Hole
引脚数 6
封装 DIP-6
封装 DIP-6
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
