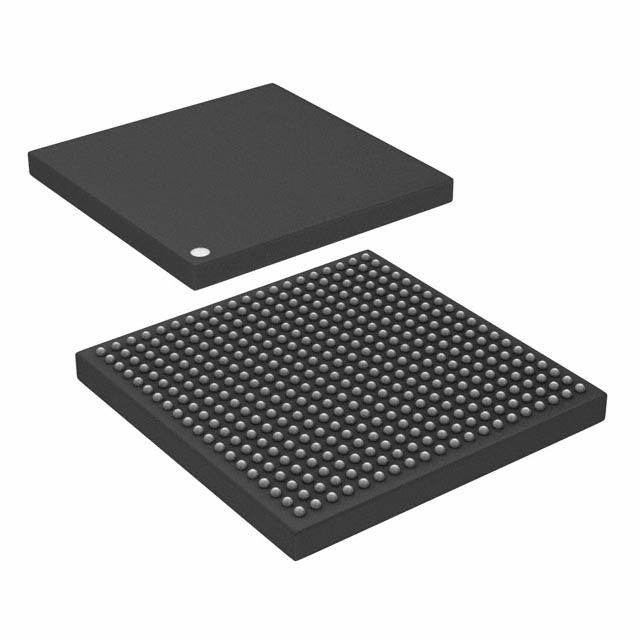

NXP MCIMX253CJM4A 芯片, 微处理器, 32位, 400MHZ, MAPBGA-400
The i.MX25 series Applications Processor extends Freescale"s ARM® ARM9™ core-based portfolio and introduces several key new features such as DDR2, two embedded USB PHYs, 3.3 V I/O support, three general-purpose 12-bit ADCs and a touchscreen controller that allows customers to reduce their overall system bill of materials cost. In addition, the i.MX25 continues to make the industrial and general embedded market a key focus of i.MX with the integration of 10/100Mbps Ethernet MAC, SD/SDIO/MMC connectivity, up to SVGA 800 x 600 resolution TFT LCD support, camera sensor interface and 400MHz CPU speed grade. Improving on the strength of previous i.MX platforms, the i.MX25 applications processor provides additional tamper detection security that monitors and helps prevent system integrity attacks from hackers, making it the right choice for any type of secure device, whether it"s a wired or wireless payment terminal POS or secure residential gateway for smart metering.
电源电压DC 1.38V min
无卤素状态 Halogen Free
针脚数 400
时钟频率 400 MHz
RAM大小 128 KB
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 1.52 V
电源电压Min 1.38 V
安装方式 Surface Mount
引脚数 400
封装 BGA-400
封装 BGA-400
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tray
制造应用 Building Automation, 工业, 无线, Industrial, 机器人, 安全, 便携式器材, Robotics, Portable Devices, 建筑自动化, Wireless, 多媒体, Multimedia, Security, 传感与仪器, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 5A992
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCIMX253CJM4A NXP 恩智浦 | 当前型号 | 当前型号 |
MCIMX251AJM4A 恩智浦 | 完全替代 | MCIMX253CJM4A和MCIMX251AJM4A的区别 |
MCIMX255AJM4A 恩智浦 | 完全替代 | MCIMX253CJM4A和MCIMX255AJM4A的区别 |
MCIMX258CJM4A 恩智浦 | 完全替代 | MCIMX253CJM4A和MCIMX258CJM4A的区别 |
