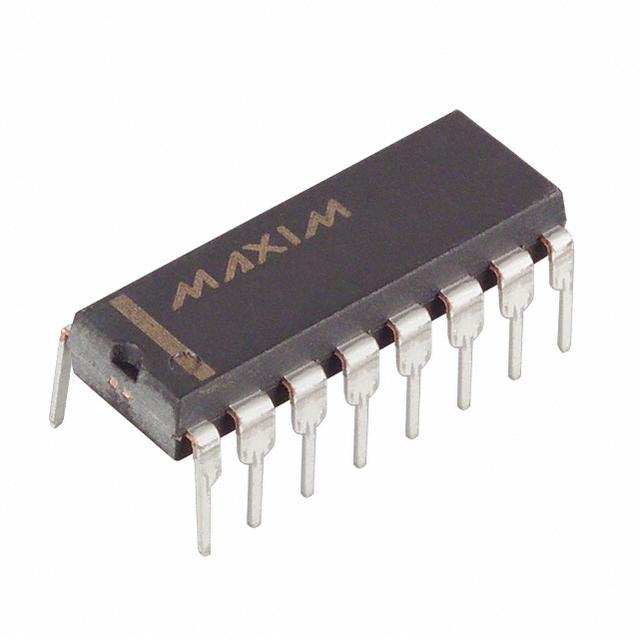

MAXIM INTEGRATED PRODUCTS MAX8214ACPE+ 芯片, 微处理器监控器, 11V, DIP-16
The is a complete microprocessor µP voltage monitor in 16 pin DIP package. It contains four precision voltage comparators capable of monitoring under voltage and overvoltage conditions for both positive and negative supplies. An accurate trip point setting is facilitated by the internal 1.25V reference, trip level accuracy is not only provided to ±1% over the commercial temperature range but also trip levels of all channels are set to match each other within ±1%. A fifth comparator channel monitors microprocessor voltages and generates delayed reset signals. It is suitable for driving LEDs or for circuits where outputs need to be wire-ORed.
电源电压DC 2.70V min
针脚数 16
耗散功率 842 mW
阈值电压 Adjustable
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 842 mW
电源电压Max 11 V
电源电压Min 2.7 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
封装 DIP-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 车用, Industrial, Automotive, 系统监控, Portable Devices, 便携式器材, 工业, System Monitoring
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX8214ACPE+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX8214ACPE 美信 | 完全替代 | MAX8214ACPE+和MAX8214ACPE的区别 |
