MMUN2215LT1 带阻NPN三极管 50V 100mA/0.1A 10k 增益160-350 SOT-23/SC-59 marking/标记 A8E ESD保护
集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 50V
\---|---
集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 50V
集电极连续输出电流IC Collector CurrentIC| 100mA/0.1A
基极输入电阻R1 Input ResistanceR1| 10KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter ResistanceR2|
电阻比R1/R2 Resistance Ratio|
直流电流增益hFE DC Current GainhFE| 160-350
截止频率fT Transtion FrequencyfT|
耗散功率Pc Power Dissipation| 0.2W/200mW
Description & Applications| Features • Simplifies Circuit Design • Reduces Board Space and Component Count • The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. • Available in 8 mm embossed tape and reel. Use the Device Number to order the 7 inch/3000 unit reel. Replace “T1” with “T3” in the Device Number to order the13 inch/10,000 unit reel.
描述与应用| 特性 •简化电路设计 •缩小板级空间和元件数量 •SOT-23封装,可以使用波或回流焊接。修改后的鸥翅引线在焊接热应力吸收消除模具损坏的可能性。 •可在8 mm压纹带和卷轴。使用的设备 号码编排7 inch/3000的单位卷轴。替换“T1” “T3”的设备号编排13 inch/10,000单位卷轴。
额定电压DC 50.0 V
额定电流 100 mA
极性 NPN
耗散功率 246 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 160 @5mA, 10V
最大电流放大倍数hFE 160
额定功率Max 246 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount

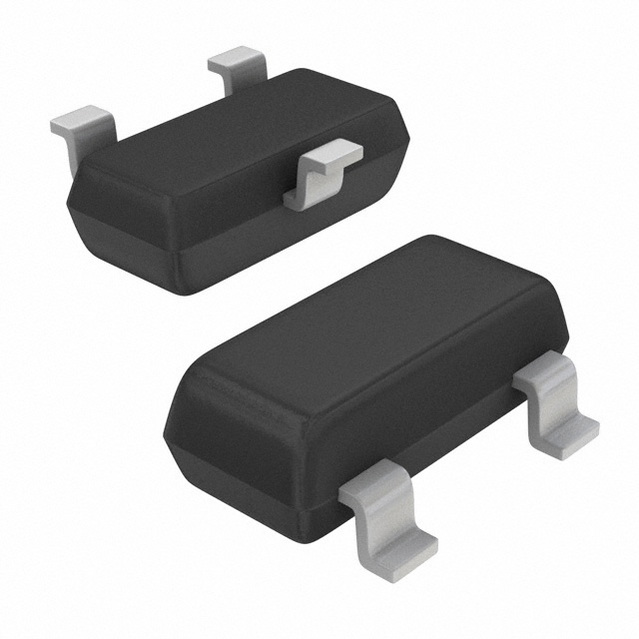

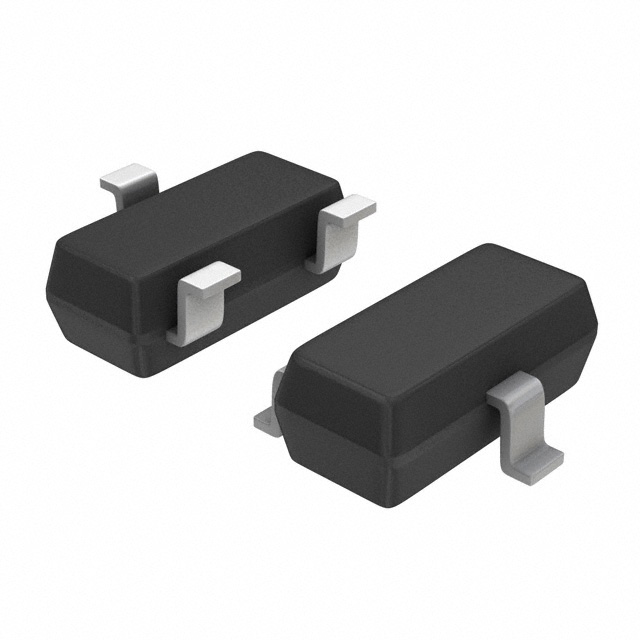

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.94 mm
封装 SOT-23-3
产品生命周期 Unknown
包装方式 Tape
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMUN2215LT1 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMUN2215LT1G 安森美 | 类似代替 | MMUN2215LT1和MMUN2215LT1G的区别 |
