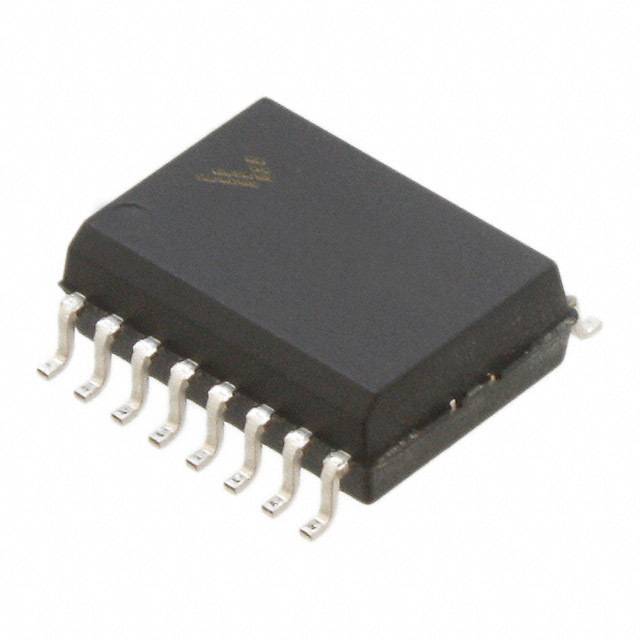

MC908QY4ACDWE

NXP  MC908QY4ACDWE  微控制器, 8位, EEPROM 仿真器 Q, HC08Q, 8 MHz, 4 KB, 128 Byte, 16 引脚, SOIC

The is a 8-bit EEPROM Emulation Microcontroller based on high-performance M68HC08 CPU with CISC architecture operates at a maximum internal bus frequency of 8MHz. The device incorporates 4096byte internal flash, on-chip random-access memory RAM, 6-channel 10-bit A/D converter and 14 general-purpose I/O pins. This device also features peripherals like 2-channel 16-bit timer interface TIM module. This device is fully upward-compatible object code with M68HC05 family.

.

Enhanced HC05 programming model

.

Extensive loop control functions

.

16 Addressing modes eight more than the HC05

.

16-bit Index register and stack pointer

.

Memory-to-memory data transfers

.

Fast 8 x 8 Multiply instruction

.

Fast 16/8 divide instruction

.

Binary-coded decimal BCD instructions

.

Efficient C language support

.

Software selectable crystal oscillator range, 32-100kHz, 1-8MHz and 8-32MHz

.

Software configurable input clock from either internal or external source

.

Auto wakeup from STOP capability using dedicated internal 32-kHz RC or bus clock source

.

6-bit Keyboard interrupt with wakeup feature KBI

.

Low-voltage inhibit LVI module features - software selectable trip point

.

Computer operating properly COP watchdog

.

Low-voltage detection with reset

.

Illegal opcode detection with reset

.

Illegal address detection with reset

.

External asynchronous interrupt pin with internal pull-up IRQ

.

Master asynchronous reset pin with internal pull-up RST
