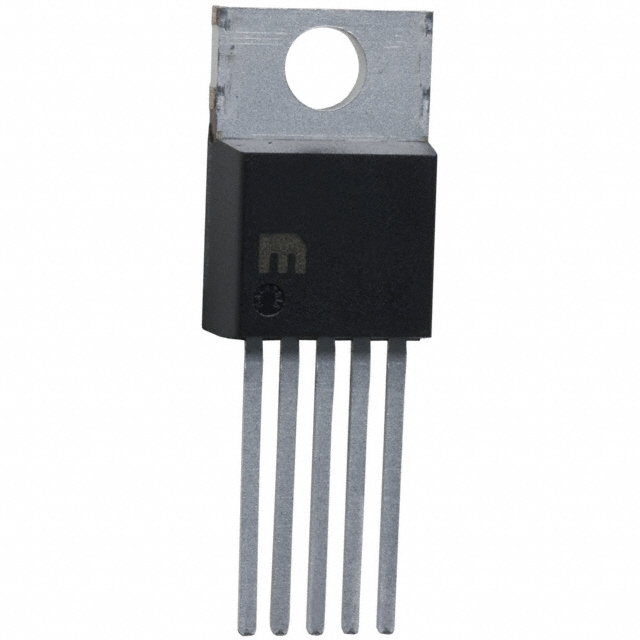

MIC29312WT

MICREL SEMICONDUCTOR  MIC29312WT  电压稳压器, LDO, 可调, 2.3V至16V输入, 600mV压差, 1.24V至15V/3A输出, TO-220-5

General Description

The MIC29310 and MIC29312 are low cost versions of MIC29300 family low-dropout LDO regulators. Manufactured on ’s proprietary Super beta PNP™ process, the MIC29310/2 is a 3A LDO regulator with very low-dropout voltage 600mV over the full load and low ground current. Along with a total accuracy of ±2% over temperature, line and load regulation these regulators feature very fast transient recovery from input voltage surges and output load current changes.

Features

• Low cost versions of MIC29300 family

• Fast transient response

• 3A current over full temperature range

• 600mV dropout voltage at full load

• Low ground current

• Accurate 1% guaranteed tolerance

• “Zero” current shutdown mode MIC29312

• Fixed voltage and adjustable versions

Applications

• Processor peripheral and I/O supplies

• PC add-in cards

• High-efficiency “green” computer systems

• High-efficiency linear power supplies

• High-efficiency switching supply post regulator

• Battery-powered equipment
