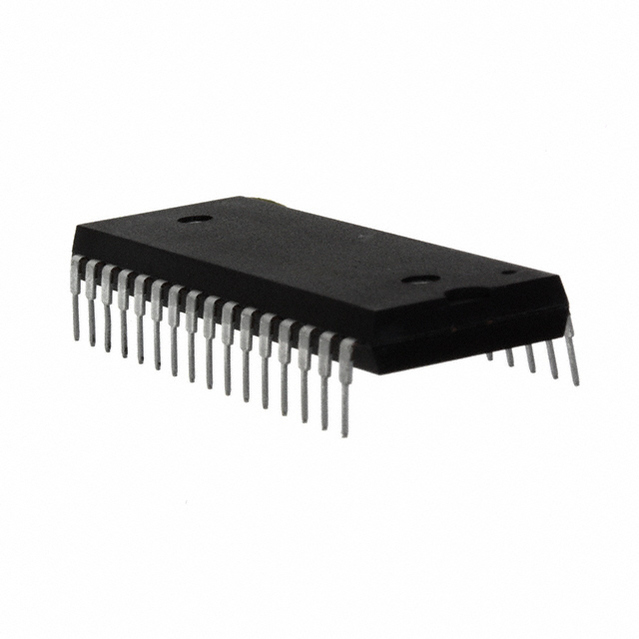

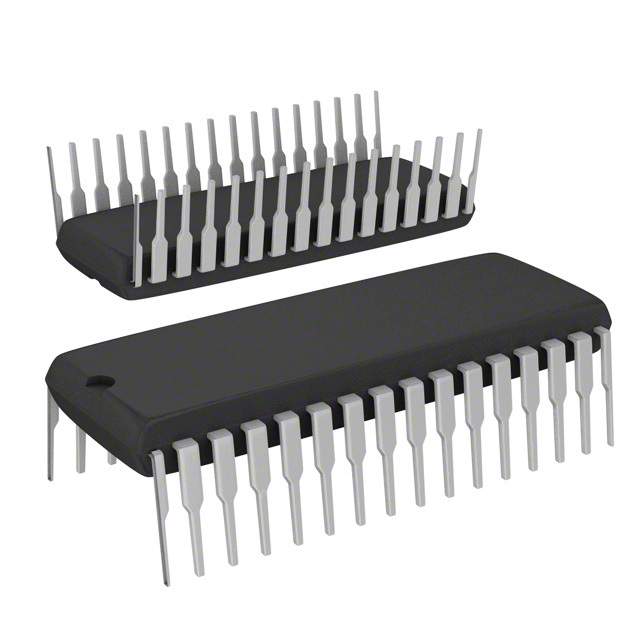

STMICROELECTRONICS M27C801-100B1 芯片, PROM, 一次编程 CMOS 8MB
Description
The M27C801 is an 8 Mbit EPROM offered in the two ranges UV ultra violet erase and OTP one time programmable. It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8bits.
Features
■ 5 V ± 10% supply voltage in Read operation
■ Access time: 55 ns
■ low Power Consumption:
– Active current: 35 mA at 5 MHz
– Standby current: 100 µA
■ Programming voltage: 12.75 V ± 0.25 V
■ Programming time: 50 µs/word
■ Electronic signature
– Manufacturer code: 20h
– Device code: 42h
■ ECOPACK® packages available
电源电压DC 5.00 V, 5.50 V max
工作电压 5.00 V
针脚数 32
时钟频率 100 GHz
存取时间 100 ns
内存容量 1000000 B
存取时间Max 100 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 32

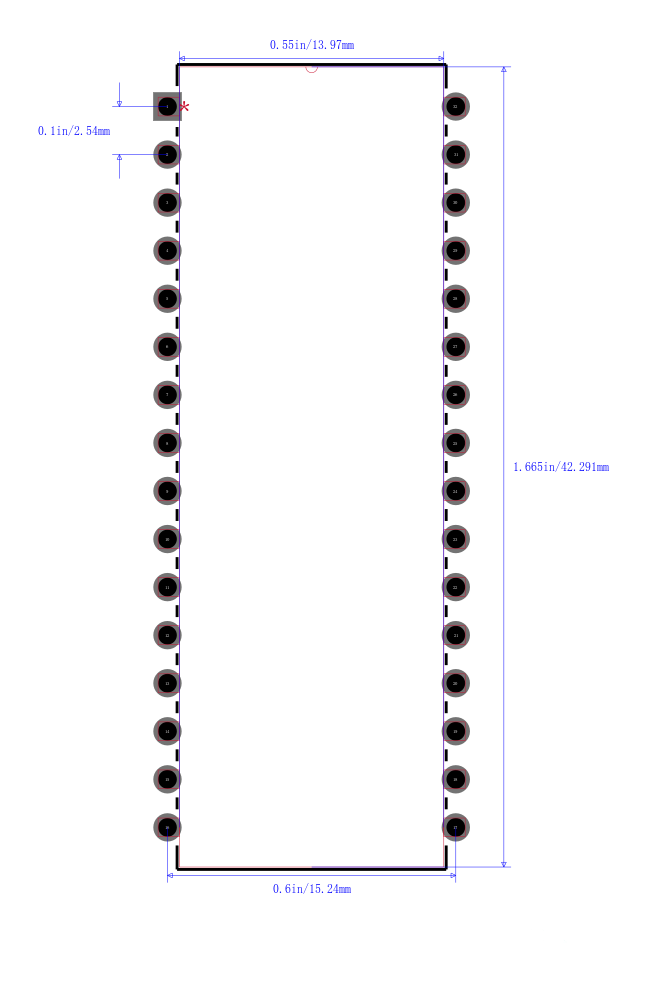

封装 DIP-32
封装 DIP-32
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M27C801-100B1 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
M27C801-100F1 意法半导体 | 类似代替 | M27C801-100B1和M27C801-100F1的区别 |
M27C801-120B1 意法半导体 | 类似代替 | M27C801-100B1和M27C801-120B1的区别 |
AT27C080-90PU 微芯 | 功能相似 | M27C801-100B1和AT27C080-90PU的区别 |
