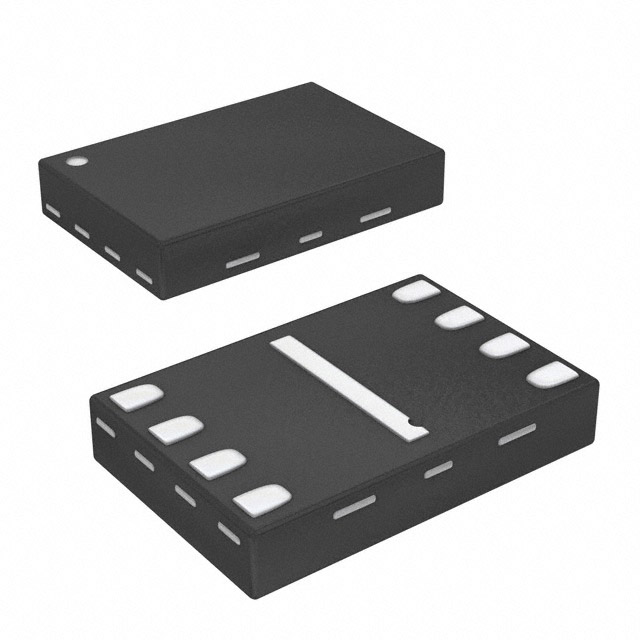

电可擦除可编程只读存储器 32Kbit 100kHz I2C 400 kHZ Fast-Mode
Description
The M24C32, M24C64 and M24128 devices are I2C-compatible electrically erasable
programmable memories EEPROM. They are organized as 4096 × 8 bits, 8192 × 8 bits and 16384 × 8 bits, respectively.
I2C uses a two-wire serial interface, comprising a bi-directional data line and a clock line.
The devices carry a built-in 4-bit Device Type Identifier code 1010 in accordance with the
I2C bus definition.
Features
■ Two-wire I2C serial interface supports 400 kHz protocol
■ Single supply voltages see Table 1 for root part numbers:
– 2.5 V to 5.5 V
– 1.8 V to 5.5 V
– 1.7 V to 5.5 V
■ Write Control input
■ Byte and Page Write
■ Random and Sequential Read modes
■ Self-timed programming cycle
■ Automatic address incrementing
■ Enhanced ESD/latch-up protection
■ More than 1 Million write cycles
■ More than 40-year data retention
■ Packages
– ECOPACK® RoHS compliant
