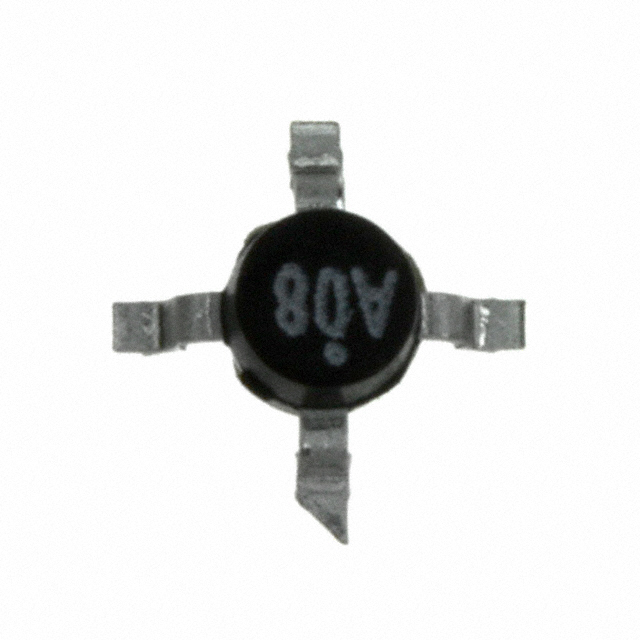

MSA-0886-BLKG

0MHz - 1000MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, PLASTIC, LEAD FREE, 4Pin

Description

The MSA-0886 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit MMIC housed in a low cost, surface mount plastic package. This MMIC is designed for use as a general purpose 50Ω gain block above 0.5 GHz and can be used as a high gain transistor below this frequency. Typical applications include narrow and moderate band IF and RF amplifiers in commercial and industrial applications.

Features

• Lead-free Option Available

• Usable Gain to 5.5 GHz

• High Gain:

   32.5 dB Typical at 0.1 GHz

   22.5 dB Typical at 1.0 GHz

• Low Noise Figure:

3.3 dB Typical at 1.0 GHz

• Surface Mount Plastic Package

• Tape-and-Reel Packaging Option Available

• Lead-free Option Available
