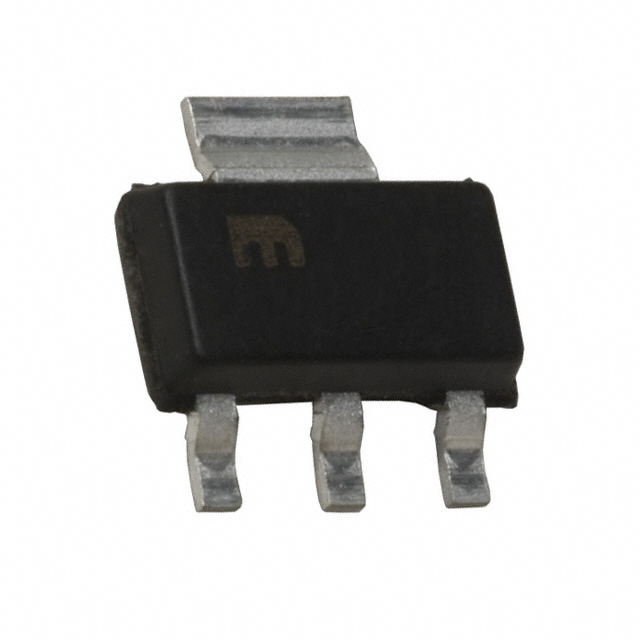

MICREL SEMICONDUCTOR MIC37100-3.3WS 固定稳压器, LDO, 2.25V至6V, 280mV压降, 3.3V输出, 1A输出, SOT-223-3
The is a 3.3V fixed output low-dropout LDO Linear Regulator provides low-voltage and high-current output. Utilizing proprietary Super βeta PNP® pass element, the device offers extremely low-dropout LDO typically 280mV at 1A and low ground current typically 11mA at 1A. The device is fully protected with overcurrent limiting and thermal shutdown.
- .
- µCap Regulator, 10µF ceramic output capacitor stable
- .
- 1% Initial accuracy
- .
- Reversed-leakage protection
- .
- Fast transient response
工作电压 2.25V ~ 6V
输入电压DC 6.00V max
输出电压 3.3 V
输出电流 1 A
针脚数 3
跌落电压 280 mV
输入电压Max 6 V
输入电压Min 2.25 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MIC37100-3.3WS Micrel 迈瑞 | 当前型号 | 当前型号 |
MIC37100-3.3WSTR 迈瑞 | 完全替代 | MIC37100-3.3WS和MIC37100-3.3WSTR的区别 |
MIC37101-3.3BMTR 迈瑞 | 类似代替 | MIC37100-3.3WS和MIC37101-3.3BMTR的区别 |
