MSA-0786-BLKG

射频放大器 4.8 SV 12.5 dB

Description

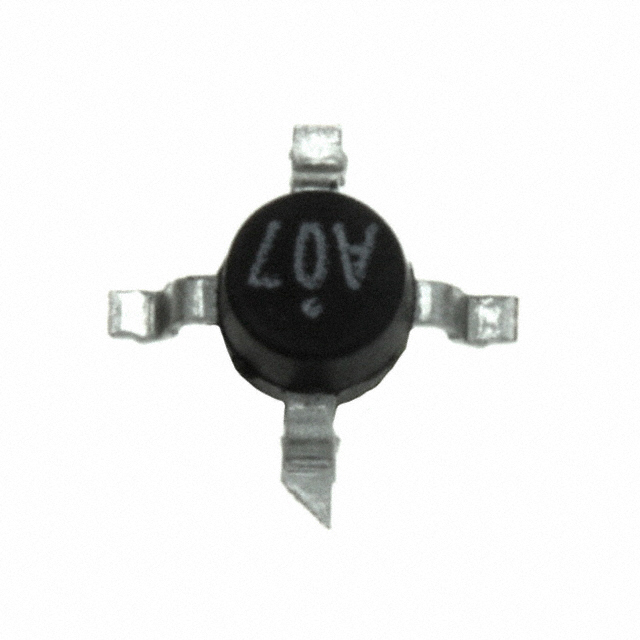

The MSA-0786 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit MMIC housed

in a low cost, surface mount plastic package. This MMIC is designed for use as a general purpose 50 gain block. Applications include narrow and broad band IF and RF amplifiers in commercial and industrial applications.

Features

Cascadable 50Ω Gain Block

Low Operating Voltage: 4.0 V Typical Vd

3 dB Bandwidth: DC to 2.0 GHz

12.5 dB Typical at 1.0 GHz

Unconditionally Stable k>1

Surface Mount Plastic Package

Tape-and-Reel Packaging Available

Lead-free Option Available
