MAX6306UK46D3-T

5引脚，多输入，可编程复位IC 5-Pin, Multiple-Input, Programmable Reset ICs

General Description

The MAX6305–MAX6313 CMOS microprocessor µP supervisory circuits are designed to monitor more than one power supply. Ideal for monitoring both 5V and 3.3V in personal computer systems, these devices assert a system reset if any of the monitored supplies falls outside the programmed threshold. Low supply current 15µA and a small package suit them for portable applications. The MAX6305–MAX6313 are specifically designed to ignore fast transients on any monitored supply.

Features

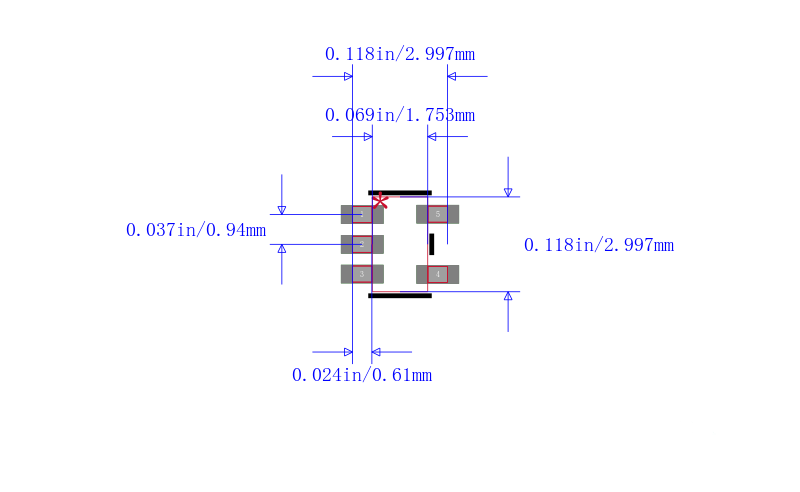

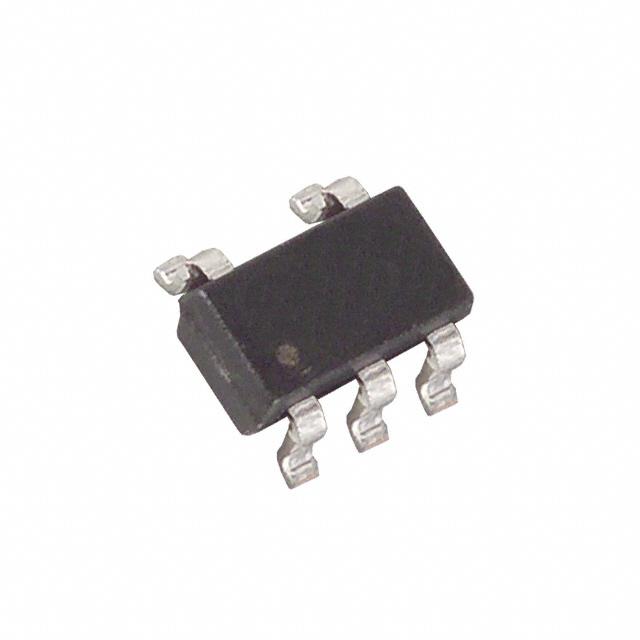

♦ Small 5-Pin SOT23 Package

♦ Precision Factory-Set VCC Reset Thresholds; Available in 0.1V Increments from 2.5V to 5V

♦ Immune to Short VCC Transients

♦ Guaranteed RESET Valid to VCC = 1V

♦ Guaranteed Over Temperature

♦ 8µA Supply Current

♦ Factory-Set Reset Timeout Delay from 1ms min to 1120ms min

♦ No External Components

♦ Manual Reset Input

♦ Under/Overvoltage Supply Monitoring

Applications

  Portable Computers

  Computers

  Controllers

  Intelligent Instruments

  Portable/Battery-Powered Equipment

  Multivoltage Systems: 3V/5V, 5V/12V, 5V/24V

  Embedded Control Systems
