MAX6319LHUK46C-T

模拟IC Analog IC

General Description

The MAX6316–MAX6322 family of microprocessor µP supervisory circuits monitors power supplies and microprocessor activity in digital systems. It offers several combinations of push/pull, open-drain, and bidirectional such as Motorola 68HC11 reset outputs, along with watchdog and manual-reset features. The Selector Guide below lists the specific functions available from each device. These devices are specifically designed to ignore fast negative transients on VCC. Resets are guaranteed valid for VCC down to 1V.

Features

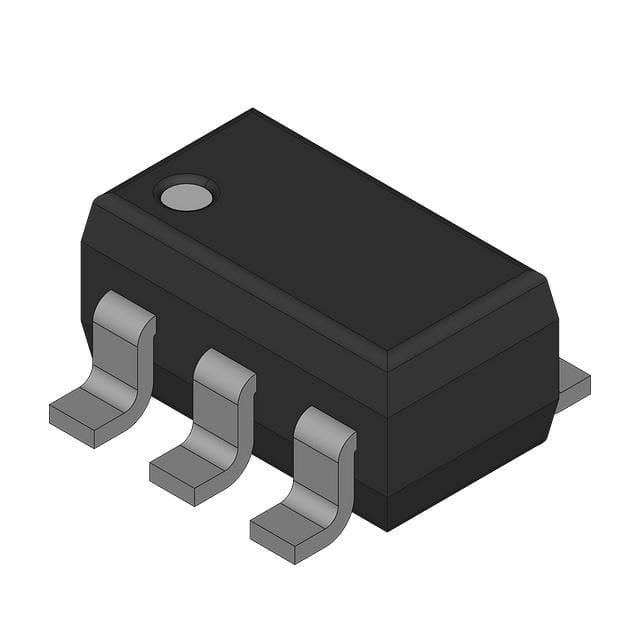

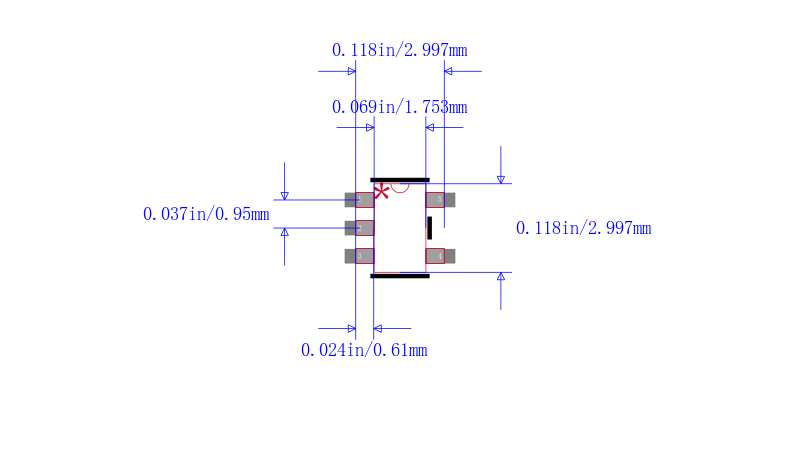

♦ Small 5-Pin SOT23 Package

♦ Available in 26 Reset Threshold Voltages

   2.5V to 5V, in 100mV Increments

♦ Four Reset Timeout Periods

   1ms, 20ms, 140ms, or 1.12sec min

♦ Four Watchdog Timeout Periods

   6.3ms, 102ms, 1.6sec, or 25.6sec typ

♦ Four Reset Output Stages

   Active-High, Push/Pull

   Active-Low, Push/Pull

   Active-Low, Open-Drain

   Active-Low, Bidirectional

♦ Guaranteed Reset Valid to VCC = 1V

♦ Immune to Short Negative VCC Transients

♦ Low Cost

♦ No External Components

Applications

  Portable Computers

  Computers

  Controllers

  Intelligent Instruments

  Portable/Battery-Powered Equipment

  Embedded Control Systems
