MAX810LTR

3引脚微处理器复位监视器 3-Pin Microprocessor Reset Monitors

The MAX809/NCV809 and MAX810 are cost-effective system supervisor circuits designed to monitor V in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 10 µsec of V falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by factory after V rises above the reset threshold. The MAX810 has an active-high RESET output while the MAX809 has an active-low RESETbar output. Both devices are available in a SOT-23 and SC-70 packages. The MAX809/810 are optimized to reject fast transient glitches on The Vline. Low supply current of 0.5 µA V = 3.3 V makes these devices suitable for battery powered applications.

Features |   | Benefits

---|---|---

 | |  | |  |

.

NCV Version for Automotive

|   |

.

AEC-Q100 Qualified

.

Precision VCC Monitor for 1.5 V, 1.8V, 2.5 V, 3.0 V, 3.3 V and 5.0 V supplies

|   |

.

Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps

|   |

.

Four Guaranteed Minimum RESET Output Duration

1ms, 20ms, 100ms and 140ms

|   |

.

RESET Output Guaranteed to VCC = 1.0 V

|   |

.

Low 1.0 µA Supply Current

|   |

.

VCC Transient Immunity

|   |

.

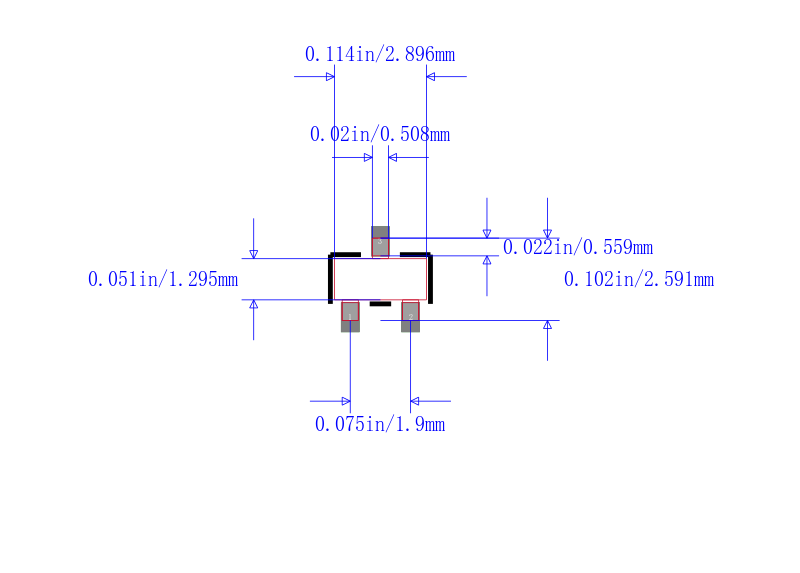

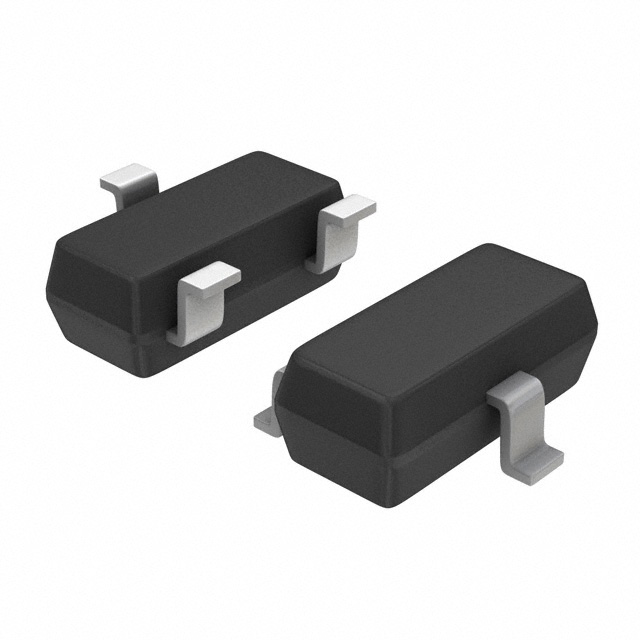

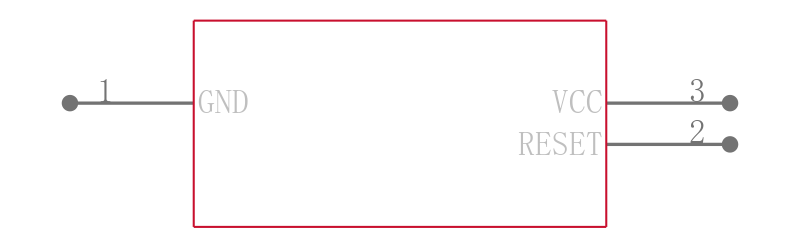

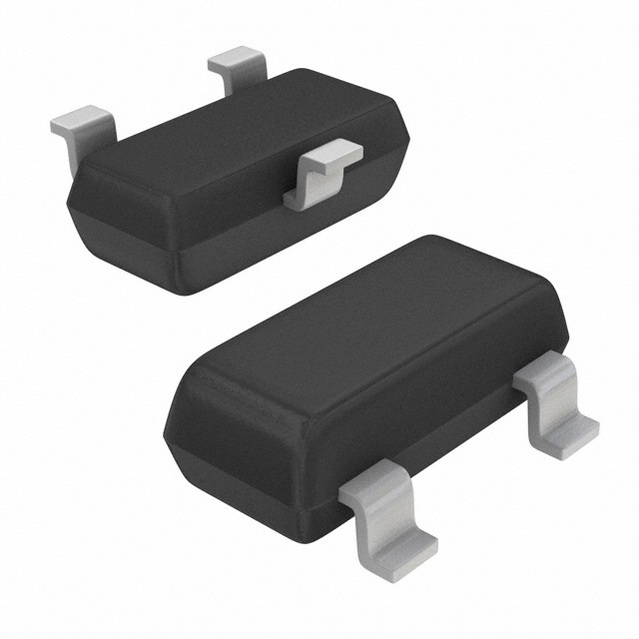

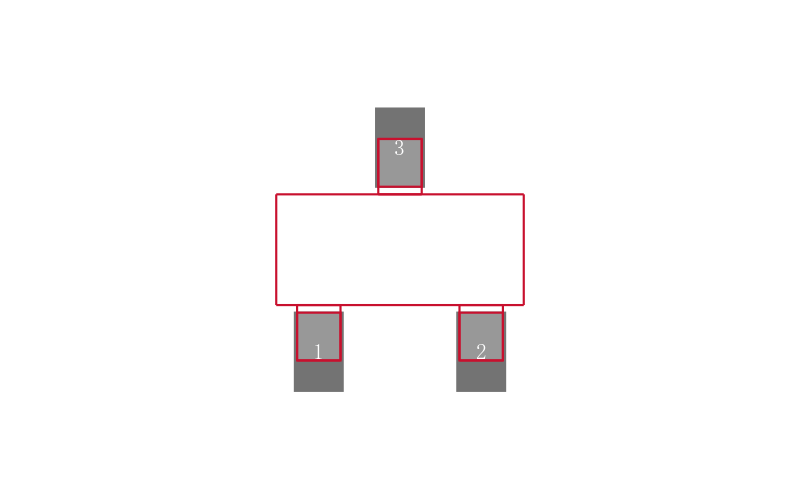

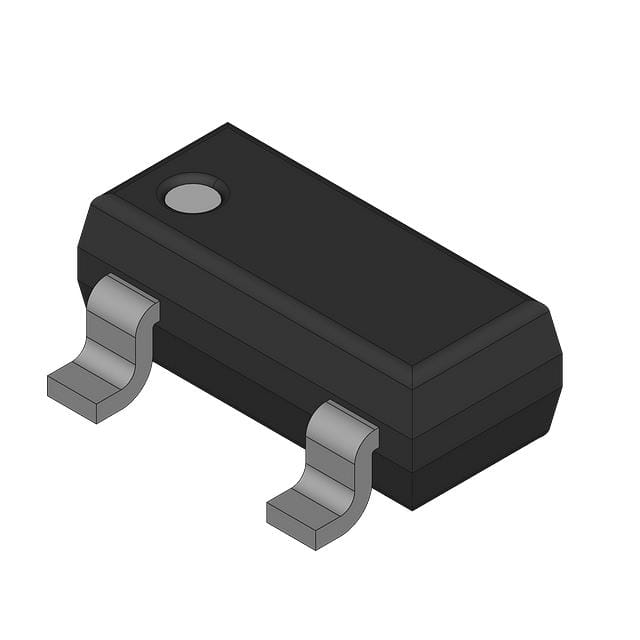

Small SOT-23 and SC-70 Package

|   |

.

No External Components

|   |

.

Wide Operating Temperature: -40°C to 105°C

|   |
