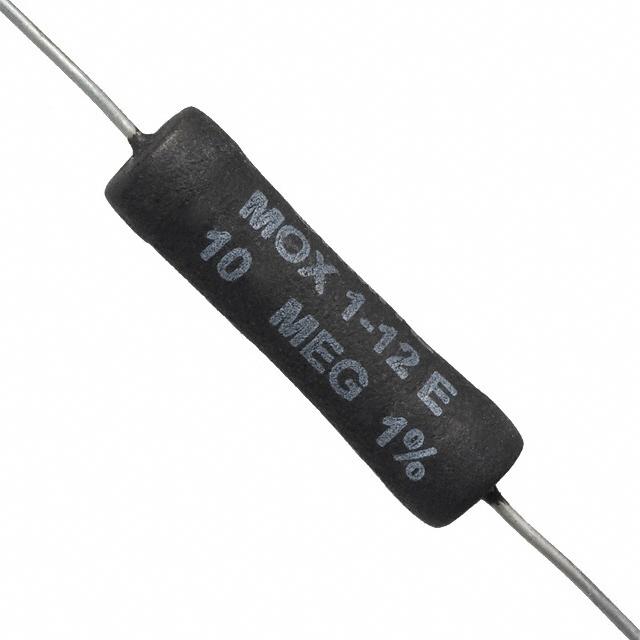

OHMITE MOX-1-121005FE 厚膜电阻, 10MΩ, 2.5W, 1%
** Maxi-MOX Series Precision Thick Film Resistors**
Ohmite Maxi-MOX series precision thick film resistors are very versatile, covering a wide resistance range as well as a wide range of operating voltages. The Maxi-MOX series are designed for industrial applications requiring more power for high voltage switching, industrial control, and high voltage current limiting. Provided with tolerances down to 1%, the Maxi-MOX resistors works well in precision circuits.
额定电压DC 10.0 kV
容差 ±1 %
额定功率 2.5 W
产品系列 MOX
电阻 10 MΩ
阻值偏差 ±1 %
额定功率Max 2.5 W
额定电压 10 kV
安装方式 Through Hole
引脚数 2
封装 Axial Leaded
长度 28.45 mm
直径 7.87 mm
脚长度 38.1 mm
封装 Axial Leaded
工作温度 -55℃ ~ 210℃
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Bulk
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 8533210090
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOX-1-121005FE Ohmite | 当前型号 | 当前型号 |
MOX-1-12-1005F Ohmite | 完全替代 | MOX-1-121005FE和MOX-1-12-1005F的区别 |
