MAXIM INTEGRATED PRODUCTS MAX6753KA46+T 芯片, 微处理器监控器, 双路, 5.5V, SOT-23-8
The is a low power microprocessor µP reset circuit with capacitor adjustable reset and watchdog timeout delay in 8 pin SOT-23 package. This microprocessor µP supervisory circuit monitors single/dual system supply voltages from 1.575V to 5V and provides maximum adjustability for reset and watchdog functions. The MAX6753 asserts a reset signal whenever the VCC supply voltage or RESET IN falls below its reset threshold or when manual reset is pulled low. The reset output remains asserted for reset timeout period after VCC and RESET IN rises above the reset threshold. The reset and watchdog delays are adjustable with external capacitors. The MAX6753 contains a window watchdog timer that looks for activity outside an expected window of operation. It is available with active-low, open drain RESET output. It is typically used in intelligent instruments, battery powered computers/controllers and embedded controllers.
电源电压DC 1.00V min
针脚数 8
耗散功率 714 mW
阈值电压 4.625 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 8

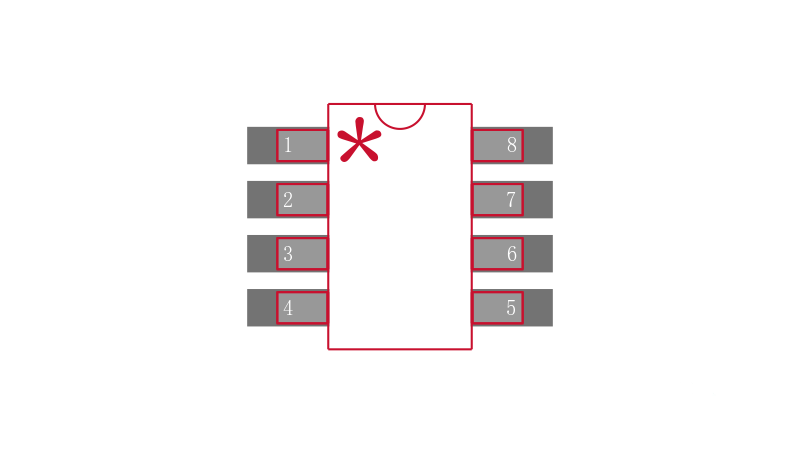

封装 SOT-23-8

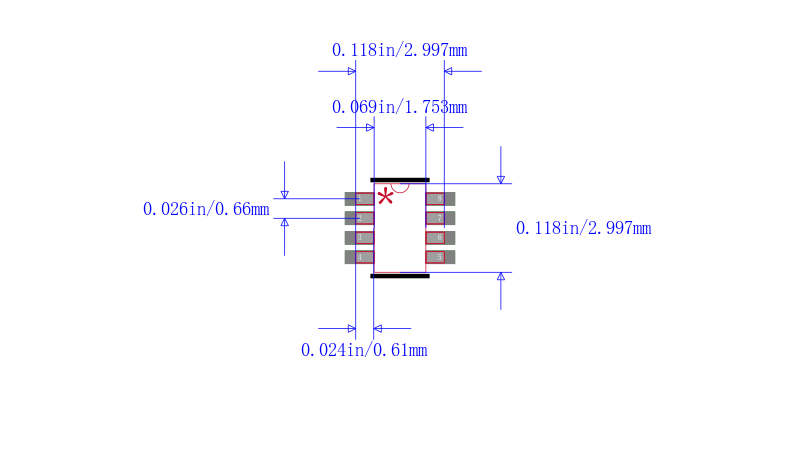

长度 2.9 mm
宽度 1.63 mm
高度 1.1 mm
封装 SOT-23-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Medical, 车用, 医用, 便携式器材, Consumer Electronics, Portable Devices, Automotive, 消费电子产品, System Monitoring, 系统监控
RoHS标准 RoHS Compliant
含铅标准 Lead Free
