M64P104KB40

VISHAY  M64P104KB40  微调器,24转 100K

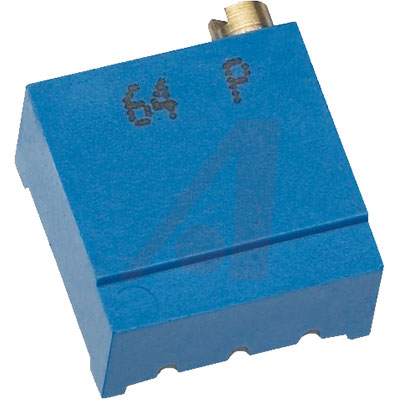

The Vishay 64 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn, small size with PC board mounting. Available in five versions P, W, X, Y, Z which differ by the position of the control screw in relation to the PC board plane and by the spacing of the terminals. Excellent operational stability is provided by the use of a cermet element.

.

10mm square potentiometer, industrial grade

.

Sealing is IP67 rated fully sealed body

.

21 turns and rotational life of 200 cycles

.

Resistance value ranges from 10 ohm to 2.2Mohm

.

±10% tolerance

.

Temperature coefficient is ±100ppm/°C

.

Operating temperature range -55°C to +155°C

.

Power Rating is 0.5W

.

Contact resistance variation < 1% typical

.

Tests according to CECC 41000 or IEC 60393-1 standards
