M21L0H1M

M21L0H1M图片1

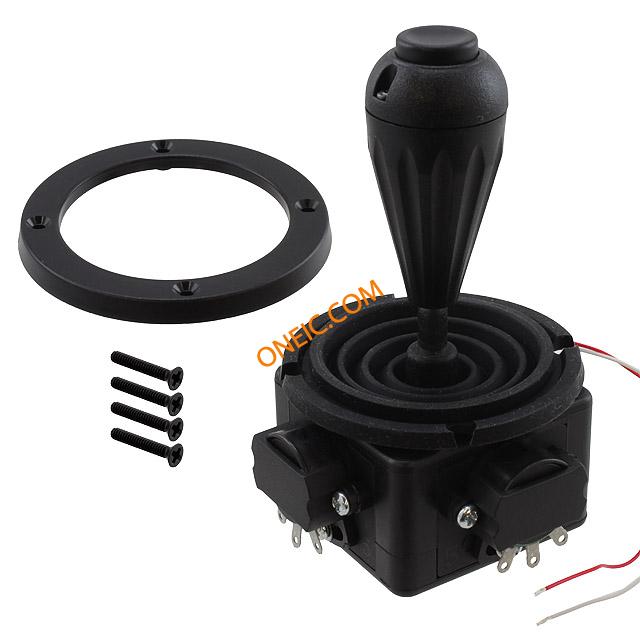

M21L0H1M图片2
M21L0H1M概述

Joystick; Two Axis Potentiometer w/ Pushbutton; Rail to Tail Potentiometer

The M Series miniature joystick is a low profile potentiometric controller providing precision multi-axes finger-positioning control. Available with up to three axes and two pushbuttons, the M Series joystick is ideal for applications requiring a compact low operating force controller. Featuring 17 ergonomically designed handles, typical applications include CCTV, robotics, electric wheelchairs, and measurement systems. The M Series is the de facto standard industrial joystick for the CCTV professional.

**Features:**

* World"s #1 Selling Joystick for CCTV Applications

* Potentiometric Sensing

M21L0H1M中文资料参数规格
技术参数

容差 ±20 %

额定功率 0.5 W

电阻 5 kΩ

工作温度Max 70 ℃

工作温度Min -25 ℃

外形尺寸

高度 59.2 mm

物理参数

工作温度 -25℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买M21L0H1M
型号: M21L0H1M
制造商: Apem Components
描述:Joystick; Two Axis Potentiometer w/ Pushbutton; Rail to Tail Potentiometer
