MSCM12

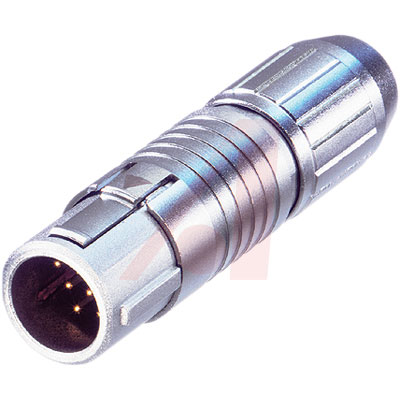

NEUTRIK  MSCM12  圆形连接器, Minicon系列, 插头, 12 触点, 公, 焊接, 电缆安装

The is a 12-pole Male Cable Connector with chuck type POM strain relief, gold-plated bronze contacts, zinc die-cast/brass shell, polyamide insert and solder termination. This miniCON series connector features flexible and compact design, perfectly suitable for multipin applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.

.

Easy to assemble

.

Contact soldering in disassembled condition avoids awkward wiring of high density contacts

.

Velour chromium housing

.

Rugged, precisely machined all metal design

.

UL94V-0 Flammability rating

.

IP5X Protection rating

.

Solderability complies with IEC 68-2-20 standard

.

* >0.5GR Insulation resistance

.

3A Current rating per contact

.

<50V Voltage rating

.

-30 to +80°C Temperature range
