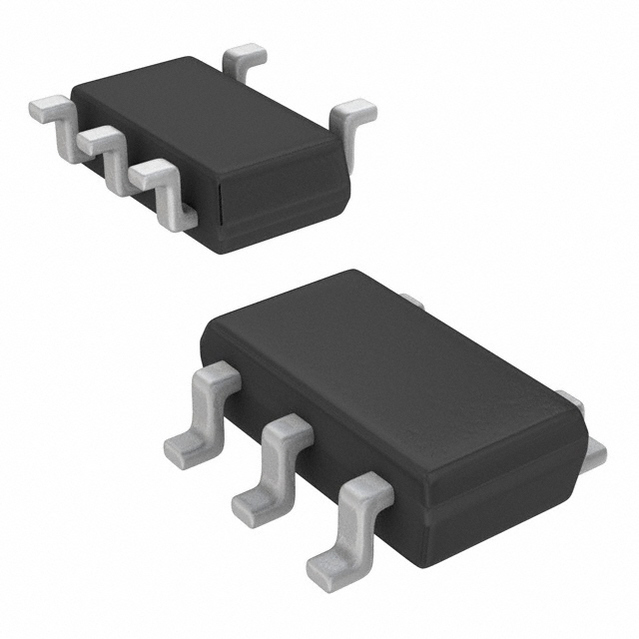

MAXIM INTEGRATED PRODUCTS MAX8887EZK33+T 固定低压差电压稳压器, 2.5V-5.5V输入, 150mV压差, 3.3V/300mA输出, TSOT-23-5
The is a low dropout, 300mA linear regulator in 5 pin TSOT-23 package. It operate from a 2.5V to 5.5V input and deliver up to 300mA continuous 500mA pulsed current. The MAX8887 is optimized for low-noise operation. The regulator feature exceptionally low 100mV dropout at 200mA. This device is available with a preset output voltage of 3.3V. An internal PMOS pass transistor allows the low 55µA supply current to remain independent of load making this device ideal for portable battery powered equipment such as personal digital assistants PDAs, cellular phones, cordless phones and notebook computers. Other features include a micropower shutdown mode, short circuit protection, thermal shutdown protection and an active-low open-drain POK output that indicates when the output is out of regulation.
输出接口数 1
输入电压DC 5.50V max
输出电压 3.3 V
输出电流 300 mA
供电电流 100 µA
针脚数 5
耗散功率 0.727 W
静态电流 0.055 mA
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Min 3.3 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 727 mW
精度 ±1.2 %
输入电压 5.5V ~ 2.5V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.88 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, 便携式器材, Portable Devices, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX8887EZK33+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
ADP1712AUJZ-3.3-R7 亚德诺 | 功能相似 | MAX8887EZK33+T和ADP1712AUJZ-3.3-R7的区别 |
MAX8887EZK33-T 美信 | 功能相似 | MAX8887EZK33+T和MAX8887EZK33-T的区别 |
ADP162AUJZ-3.3 亚德诺 | 功能相似 | MAX8887EZK33+T和ADP162AUJZ-3.3的区别 |
