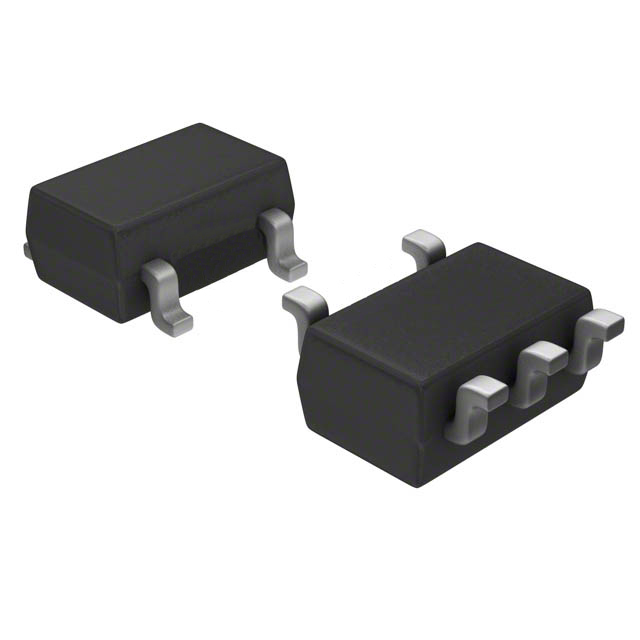

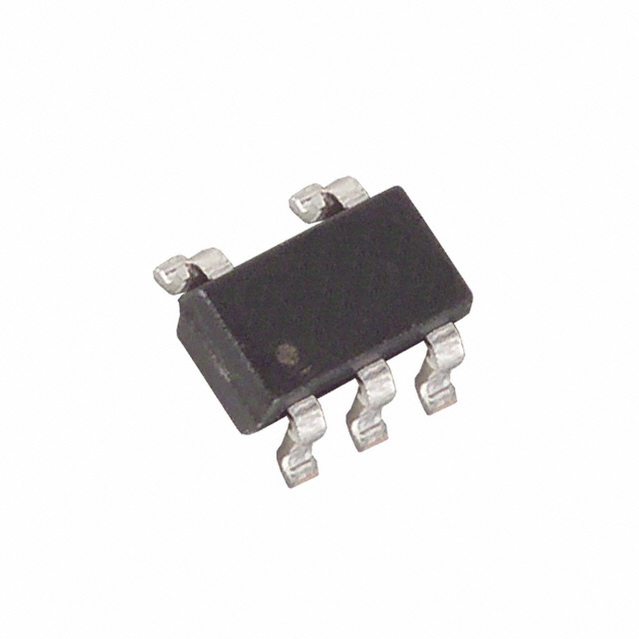

MAXIM INTEGRATED PRODUCTS MAX1735EUK30+T 固定电压稳压器, LDO, -6.5V至-2.5V, 80mV压差, 3V输出, 200mA输出, SOT-23-5
The is a 200mA, negative output, low dropout linear regulator in 5 pin SOT-23 package. This linear regulator operates from a -2.5V to -6.5V input and delivers a 200mA with a low 80mV dropout. The high accuracy ±1% output voltage is preset or can be adjusted from -1.25V to -5.5V with an external resistive voltage-divider. An internal N-channel MOSFET allows for a low 85µA quiescent current virtually independent of the load making this device ideal for battery-powered portable equipment, such as PDAs, mobile phones, cordless phones and wireless data modems. It features dual mode operation allowing a fixed -3V output voltage or an adjustable output from -1.25V to -5.5V. It also offers a 1nA low power shutdown mode, short circuit protection and thermal overload protection. Typical applications include disk drives, modems, instrumentation amplifiers, mobile and cordless telephones, PCMCIA cards, GaAsFET bias, mobile wireless data modems & PDAs and palmtop computers.
输入电压DC -2.50 V max
输出电压 3 V
输出电流 200 mA
针脚数 5
跌落电压 80 mV
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 5

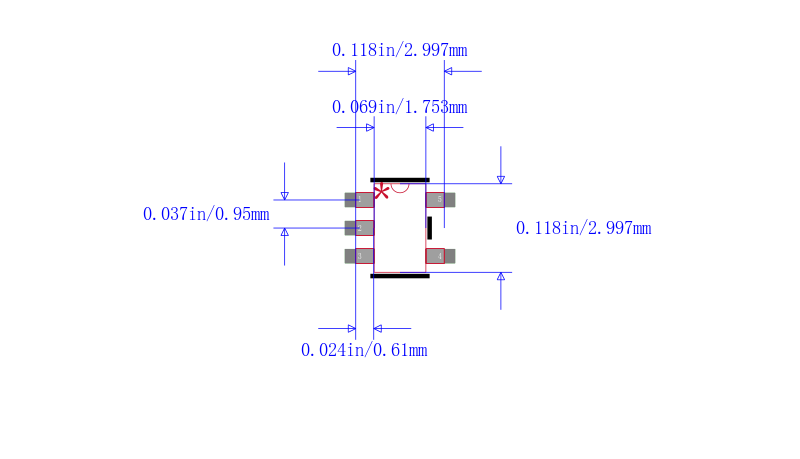

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, 电源管理, 通信与网络, 便携式器材, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX1735EUK30+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX1735EUK25+T 美信 | 完全替代 | MAX1735EUK30+T和MAX1735EUK25+T的区别 |
MAX1735EUK50+T 美信 | 类似代替 | MAX1735EUK30+T和MAX1735EUK50+T的区别 |
MAX1735EUK30-T 美信 | 类似代替 | MAX1735EUK30+T和MAX1735EUK30-T的区别 |
