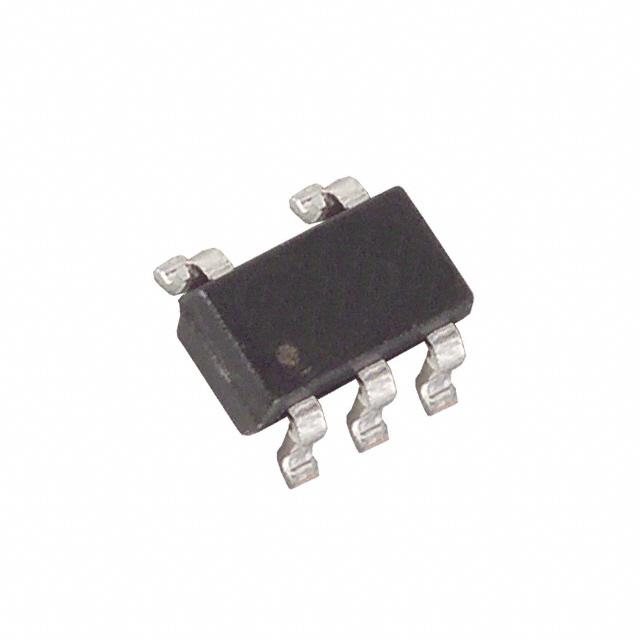

MAXIM INTEGRATED PRODUCTS MAX1616EUK+T 芯片, 稳压器, LDO, 固定
The is a high-voltage, low power linear regulator for notebook computers in 5 pin SOT-23 package. It is a linear regulator that supplies always-on, keep-alive power to CMOS RAM and microcontrollers µCs in systems with high-voltage batteries. Key features include wide input voltage range, low dropout voltage and low quiescent supply current. Despite a miserly 8µA max no-load supply current, the MAX1616 have excellent line-transient response and AC power-supply rejection ratio. It provide a clean an adjustable 1.24V to 28V output, even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power. It is an excellent thermal characteristic and tolerates up to 571mW of power dissipation. Fault protection is provided by internal foldback current limiting and thermal shutdown circuitry.
电源电压DC 28.0V max
输入电压DC 28.0V max
输出电压 1.24V ~ 28V
输出电流 30 mA
针脚数 5
耗散功率 571 mW
跌落电压 350 mV
输入电压Max 28 V
输入电压Min 4 V
输出电压Max 28 V
输出电压Min 1.24 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4V ~ 28V
安装方式 Surface Mount
引脚数 5

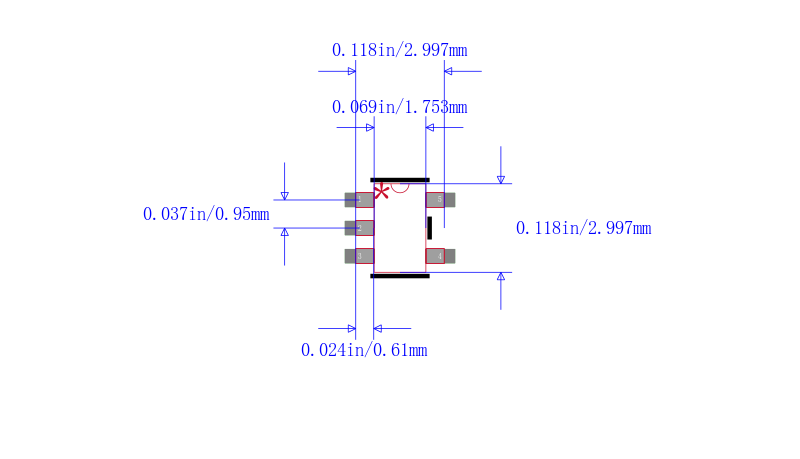

封装 SOT-23-5
长度 2.9 mm
宽度 1.63 mm
高度 1.1 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 便携式器材, Power Management, 电源管理, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX1616EUK+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX1616EUK-T 美信 | 类似代替 | MAX1616EUK+T和MAX1616EUK-T的区别 |
