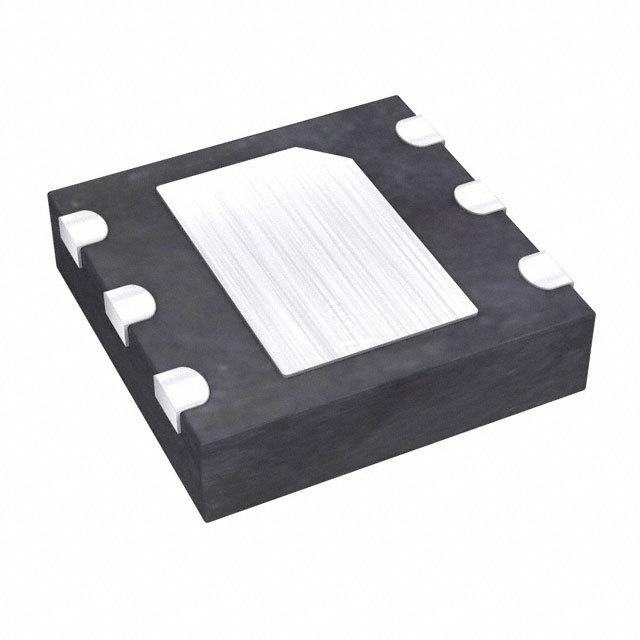

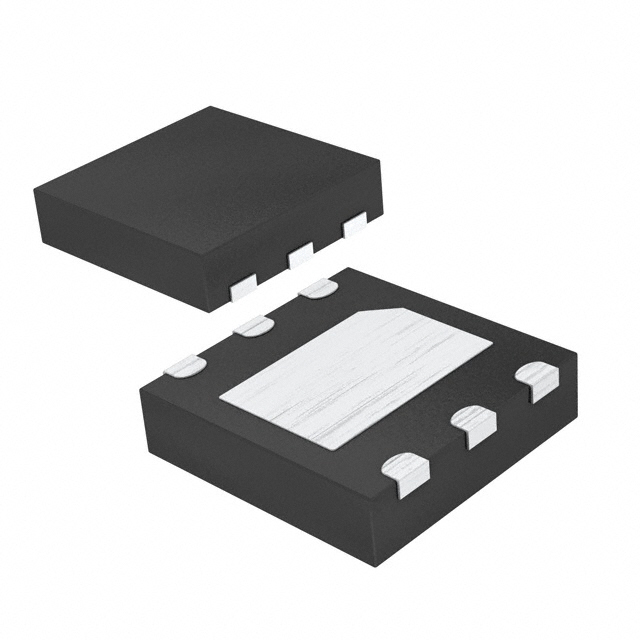

MAX15006AATT+T

MAXIM INTEGRATED PRODUCTS  MAX15006AATT+T  固定低压差电压稳压器, 4V-40V输入, 1V压差, 3.3V/50mA输出, TDFN-6

The is an ultra low quiescent current linear regulator in 6 pin TDFN package. This device with fixed output of 3.3V is ideal for use in battery operated systems and it operates from an input voltage of 4V to 40V. The regulator delivers up to 50mA of output current and consumes only 10µA of quiescent current at no load. The internal P channel pass device keeps the quiescent current low even at full load 90µA.

.

Operates through cold crank condition

.

Automotive temperature range from -40°C to 125°C

.

Withstands 45V load dump

.

Power supply rejection ratio is 66dB at f=100Hz

.

Dropout voltage is 1V

.

Stable operation with tiny 2.2µF output capacitor

.

Thermal and short circuit protection
