MAX883EPA+

MAXIM INTEGRATED PRODUCTS  MAX883EPA+  固定低压差电压稳压器, 2.9V-11.5V输入, 220mV压差, 5V/200mA输出, DIP-8

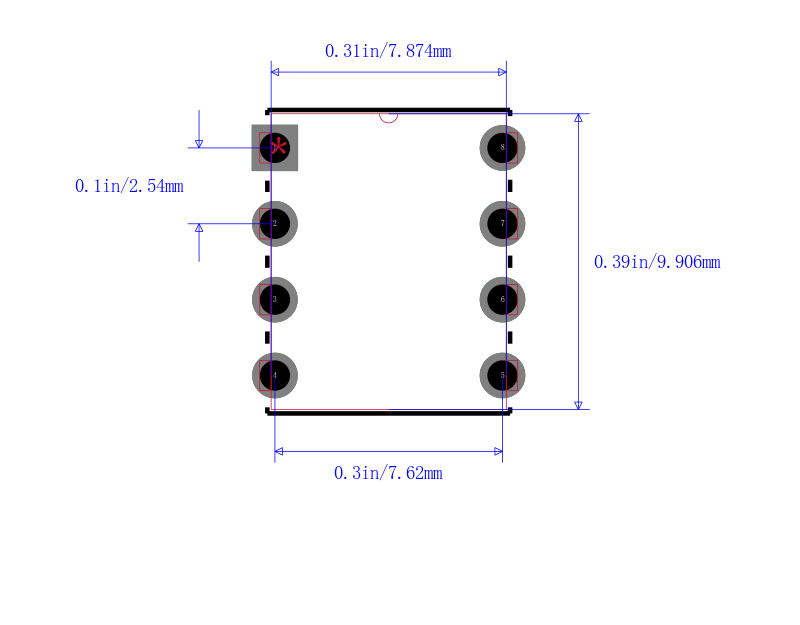

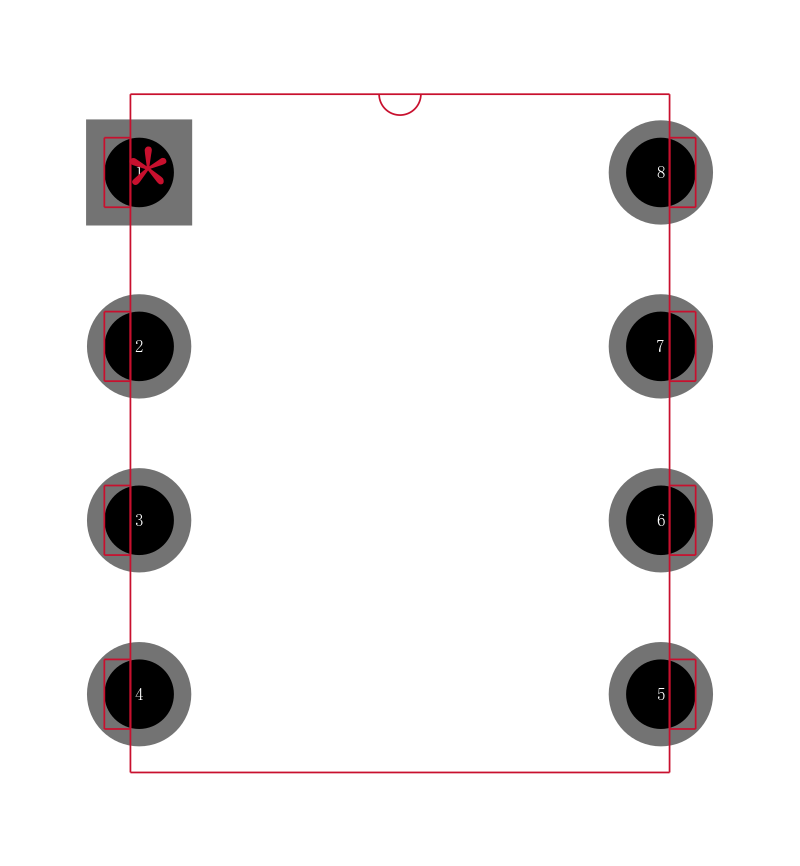

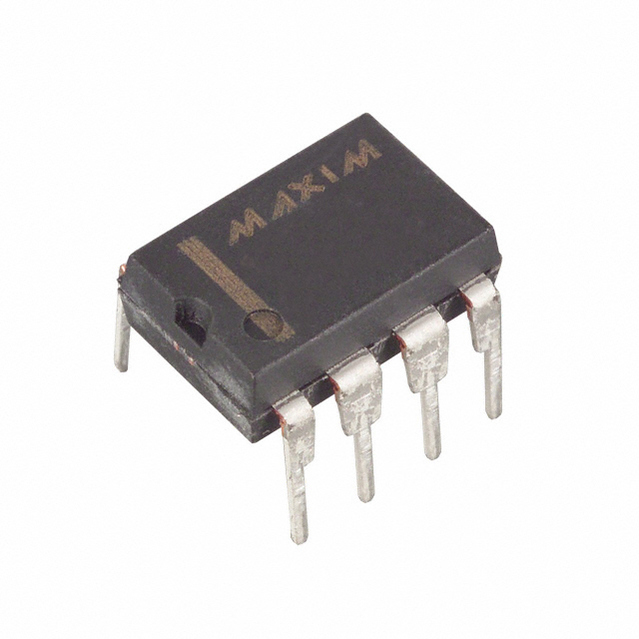

The is a low IQ, low dropout linear regulator in 8 pin DIP package. It maximizes battery life by combining ultra low supply currents and low dropout voltages. It has 200mA output current capability at up to +125°C junction temperature. The MAX883 uses P-channel MOSFET pass transistor to maintain low 11µA 15µA maximum supply current from no load to the full 200mA output. Unlike earlier bipolar regulators, there are no PNP base current losses that increase with output current. In dropout, the MOSFET does not suffer from excessive base currents that occur when PNP transistors go into saturation. The MAX883 features shutdown OFF mode that turns off all circuitry by reducing supply current to less than 1µA. This device includes low battery detection comparator, foldback current limiting, reverse current protection and thermal overload protection.

.

Dual mode operation, fixed 5V or 1.25V to 11V adjustable output voltage

.

Input voltage range from 2.9V to 11.5V

.

Operating temperature range from -40°C to 85°C

.

Internal 1.1ohm P-channel pass transistor draws no base current

.

Low dropout voltage of 220mV at 200mA output current

.

Load regulation of 60mV IOUT = 1mA to 200mA and line regulation of 10mV

.

Foldback current limit of 170mA VOUT < 0.8V and 430mA VOUT > 0.8V and VIN - VOUT > 0.7V
