MCMHR10V337M8X7

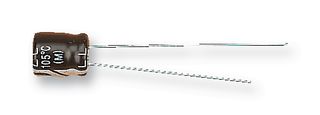

MULTICOMP  MCMHR10V337M8X7  铝电解电容, MCMHR系列, 330 µF, ± 20%, 10 V, 8 mm, 径向引线

The MCMHR series capacitors are radial leaded, polarized aluminium electrolytic capacitors with 0.1µF to 470µF capacitance range. These capacitors have a short body length of 7mm. MCMHR series capacitors are most suitable for high density applications.

.

Rated voltage range from 6.3VDC to 63VDC

.

±20% tolerance

.

Endurance is 1000h at 105°C

.

Operating temperature range -40°C to 105°C

.

Capacitor size varies from 4mm x 7mm to 8mm x 9mm D x L
