MAX8510EXK18+T

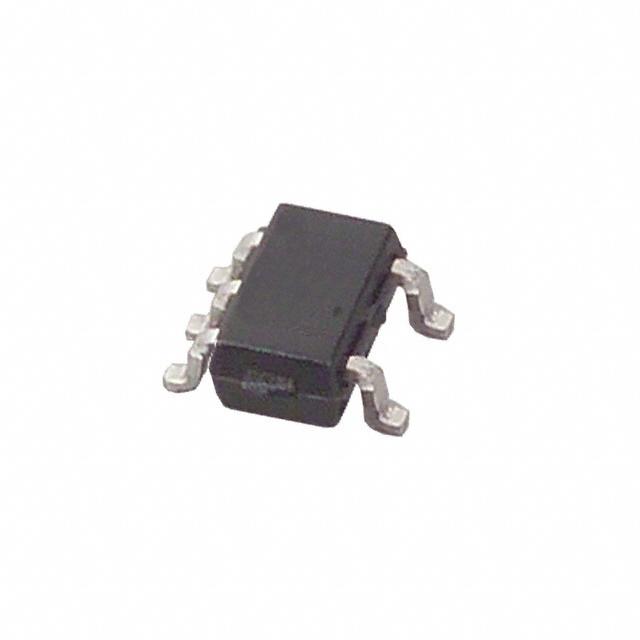

MAXIM INTEGRATED PRODUCTS  MAX8510EXK18+T  稳压器, 固定LDO, 2V至6V输入, 1.8V/120mA输出, SC-70-5

The is an ultra low noise, high PSRR low dropout linear regulator with fixed output in 5 pin SC-70 package. This linear regulator is designed to deliver up to 120mA continuous output current. The MAX8510 uses an advanced architecture to achieve ultra low output voltage noise of 11µVrms at 100Hz to 100KHz and PSRR of 78dB at f = 1KHz. Designed with P-channel MOSFET series pass transistor, the MAX8510 maintains very low ground current of 40µA. The regulator is designed and optimized to work with low value and low cost ceramic capacitors. It requires only 1µF typically of output capacitance for stability with any load. When disabled, current consumption drops to below 1µA.

.

Fixed output voltage of 1.8V

.

Operating temperature range from -40°C to 85°C

.

Input voltage range from 2V to 6V

.

Excellent load/line transient

.

Overcurrent and thermal protection

.

Designed for space restricted applications
