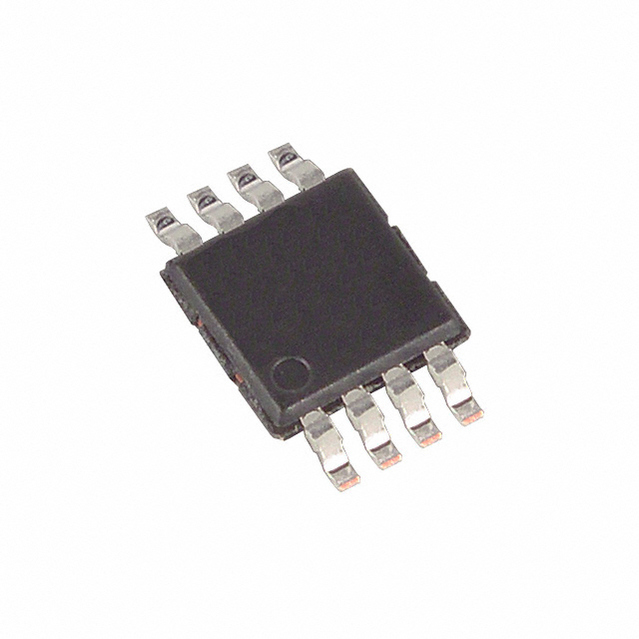

MAXIM INTEGRATED PRODUCTS MAX8860EUA33+T 固定低压差电压稳压器, 2.5V-6.5V输入, 155mV压差, 3.3V/300mA输出, µMAX-8
The is a low dropout, 300mA linear regulator in 8 pin µMAX package. The MAX8860 low-noise, low-dropout linear regulator with output noise of 60µVRMS and typical dropout is 105mV at 200mA. Available with preset output voltage of 3.3V, the Dual Mode feature allows the device to be configured as an adjustable output regulator from 1.25V to 6.5V. Designed with an internal P-channel MOSFET pass transistor, the MAX8860 has a low 120µA supply current. An output fault-detection circuit indicates loss of regulation. Other features include a 10nA, logic-controlled shutdown mode, short-circuit and thermal-shutdown protection and reverse battery protection. Typical applications include wireless handsets, DSP core power, PCMCIA cards, hand-held Instruments, palmtop computers and electronic planners.
输出接口数 1
输入电压DC 6.50V max
输出电压 3.3 V
输出电流 300 mA
针脚数 8
耗散功率 330 mW
跌落电压 155 mV
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 330 mW
精度 ±1.4 %
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 8
封装 uMAX-8
宽度 3.1 mm
封装 uMAX-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 便携式器材, Power Management, 电源管理, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX8860EUA33+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX8860EUA33+ 美信 | 类似代替 | MAX8860EUA33+T和MAX8860EUA33+的区别 |
MAX8860EUA28+T 美信 | 类似代替 | MAX8860EUA33+T和MAX8860EUA28+T的区别 |
LP3982IMM-1.8/NOPB 德州仪器 | 功能相似 | MAX8860EUA33+T和LP3982IMM-1.8/NOPB的区别 |
