MAX1983EUT+T

低电压，低压差线性稳压器，外部偏置电源 Low-Voltage, Low-Dropout Linear Regulators with External Bias Supply

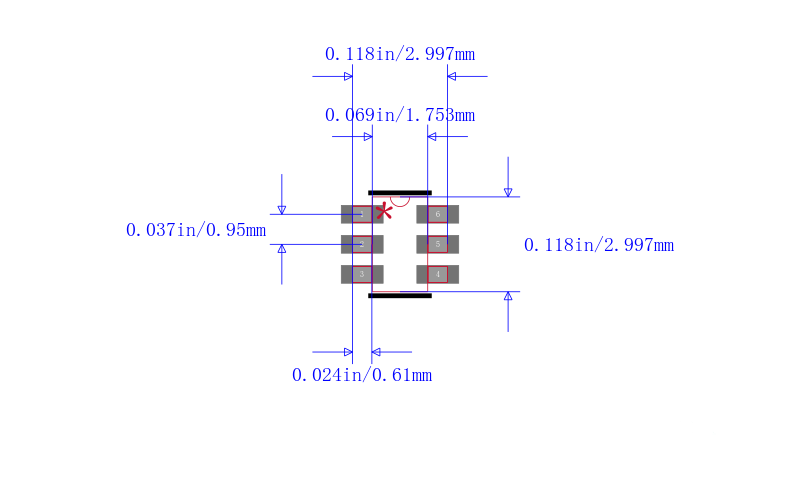

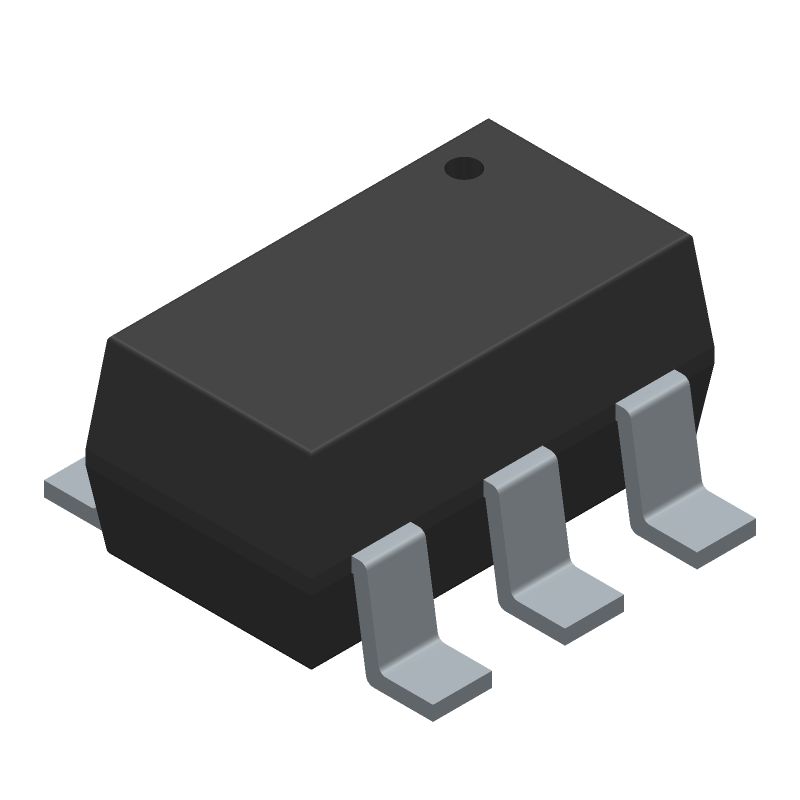

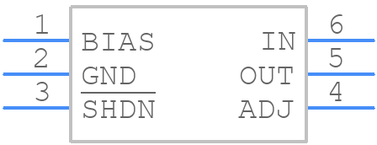

The is a low voltage, low dropout linear regulator with external bias supply in 6 pin SOT-23 package. The 5V bias supply drives gate of internal N-channel pass transistor making device ideal for applications that require low voltage outputs from low voltage inputs. It delivers an adjustable output voltage from 0.8V to 2V. It includes a current limit and thermal shutdown that protects regulator in event of a fault condition. It is used in notebook computers, VID power supplies, PDAs, cell phones and low dropout regulators with external bias supply.

.

Supply voltage range is 1.25V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

No minimum load current required

.

Power-good PGOOD open drain output with 1ms rising edge propagation delay

.

Low supply current IBIAS + IIN = 165µA typ

.

5µA max shutdown supply current

.

Dropout voltage of 350mV max at ILOAD = 300mA
