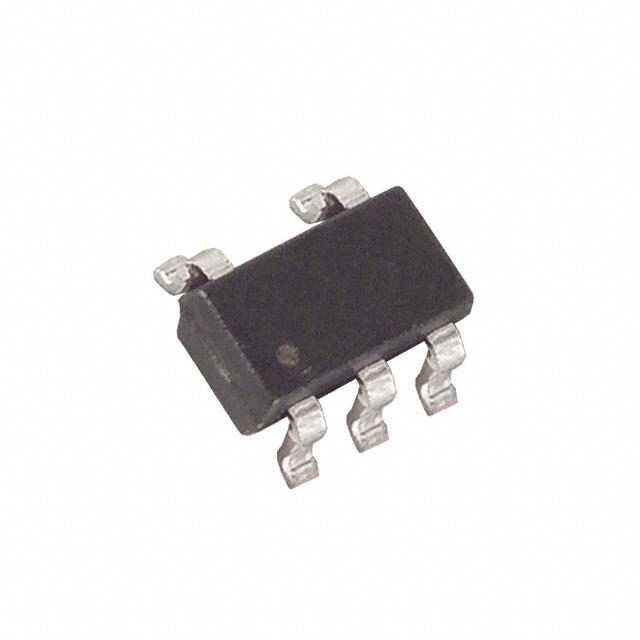

MAX1726EUK33+T

MAXIM INTEGRATED PRODUCTS  MAX1726EUK33+T  固定低压差电压稳压器, 2.5V-12V输入, 300mV压差, 3.3V/80mA输出, SOT-23-5

The is an ultra low supply current, low dropout LDO linear regulator in 5 pin SOT-23 package. This regulator is intended for low power applications that demand the longest possible battery life. Unlike inferior PNP based designs, the PMOS pass elements of MAX1726 maintain an ultra low 2µA supply current throughout their entire operating range and in dropout. Along with ultra low power consumption, the MAX1726 has tight output accuracy 1.5% and require just 1µF output capacitance to achieve good load transient response. This regulator has wide input voltage range from 2.5V to 12V which makes it excellent choices for systems powered from two lithium-ion Li+ cells and 9V batteries. It also includes reverse battery protection, short circuit protection and thermal protection. The MAX1726 is used in smoke detectors, remote transmitters, smart battery packs, microcontroller power, real time clock backup power and battery powered alarms.

.

Fixed output voltage of 3.3V

.

Operating temperature range from -40°C to 85°C

.

Maximum output current of 80mA

.

Dropout voltage of 300mV at IOUT = 20mA

.

1.5% output voltage accuracy

.

Small 1µF output capacitor

.

Shutdown supply current of 0.7µA

.

Line regulation of 0.01%/V at VIN = 2.5V or VOUT + 0.5V to 12V

.

Load regulation of 0.015%/mA at IOUT = 1mA to 20mA, VIN = VOUT + 1V or 3V
