NXP MC908AZ60ACFUE 微控制器, 8位, HC08AS - AZ, 8 MHz, 60 KB, 2 KB, 64 引脚, QFP
The is a high-performance Microcontroller Unit combines a proven, high-performance 8-bit processing core with the semiconductor industry"s most flexible and embedded flash technology. The range meets the needs of most microcontroller applications, with derivatives including powerful timers, high-accuracy analogue peripherals and advanced serial communications interfaces such as CAN and USB. The heart of the microcontroller is the CPU08 processing core. This CISC architecture CPU runs at bus speeds of up to 8MHz, with a minimum instruction cycle time of 125ns. It provides functions such as hardware multiply and divide, as well as powerful data handling capabilities. The advanced addressing modes and linear address space make programming in either assembler or C much more straightforward and efficient than in most RISC architecture microcontrollers.
频率 8.4 MHz
电源电压DC 5.00 V, 5.50 V max
无卤素状态 Halogen Free
针脚数 64
时钟频率 8.40 MHz, 8.40 MHz max
RAM大小 2 KB
位数 8
FLASH内存容量 61440 B
I/O引脚数 52
存取时间 8.40 µs
内核架构 HC08
内存容量 64000 B
模数转换数ADC 1
输入/输出数 52 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 64

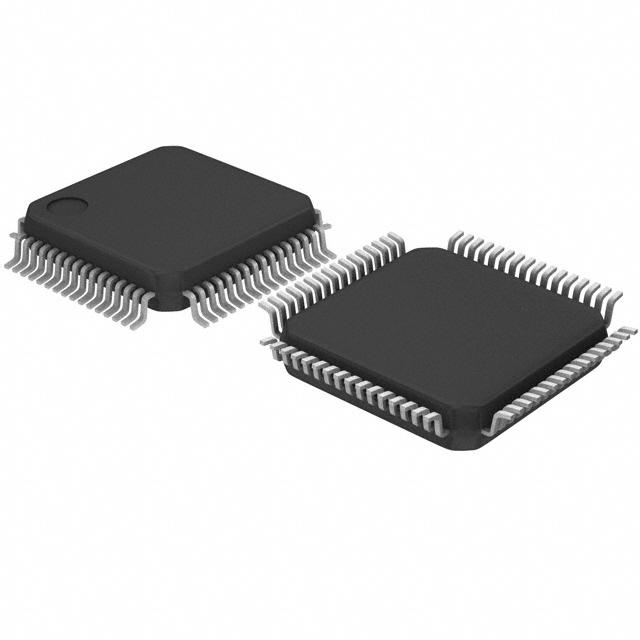

封装 QFP-64
封装 QFP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tray
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC908AZ60ACFUE NXP 恩智浦 | 当前型号 | 当前型号 |
MC908AZ60AVFUE 恩智浦 | 类似代替 | MC908AZ60ACFUE和MC908AZ60AVFUE的区别 |
MC908AZ60ACFUER 恩智浦 | 类似代替 | MC908AZ60ACFUE和MC908AZ60ACFUER的区别 |
MC908AZ60ACFU 恩智浦 | 类似代替 | MC908AZ60ACFUE和MC908AZ60ACFU的区别 |
