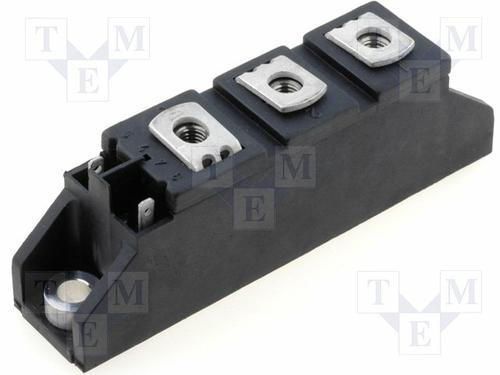

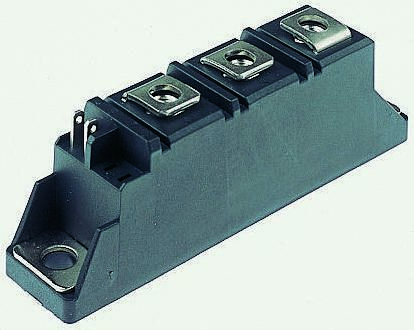

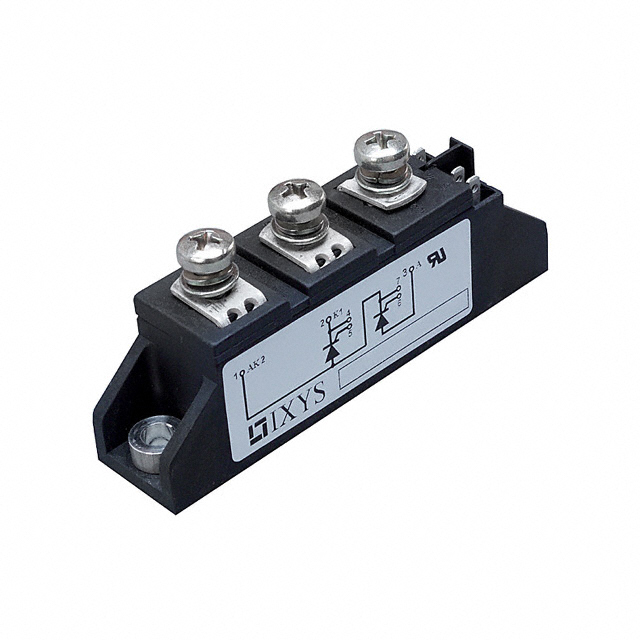

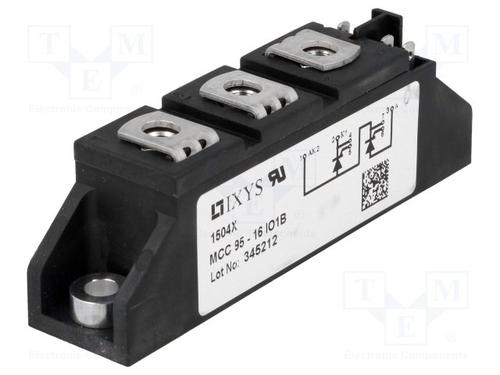

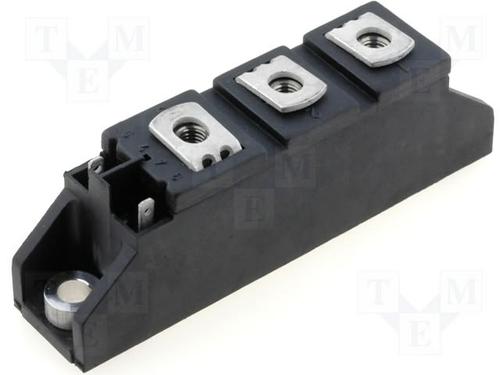

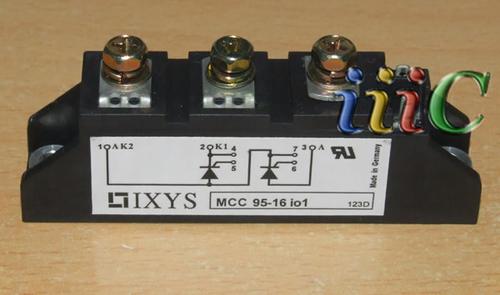

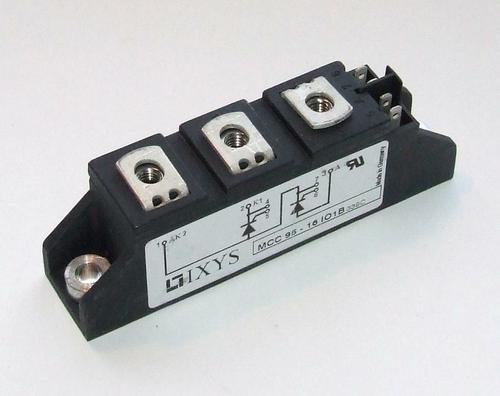

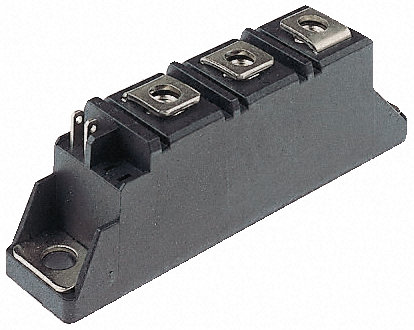

IXYS SEMICONDUCTOR MCC95-16IO1B 晶闸管, 1600 V, 200 mA, 116 A, 180 A, TO-240AA, 3 引脚
MCC 系列
Dual 系列闸流晶体管
### 认可
UL 认证组件
得捷:
THYRISTOR MODULE 1600V 2X116A
欧时:
Dual Thyristor module 180A 1600V
艾睿:
A simple current trigger will turn on this scr module MCC95-16IO1B thyristor manufactured from Ixys Corporation and a forward-biased voltage will leave it on. This device has a surge current rating of 2400 A. Its repetitive peak forward blocking voltage is 1600 V, while its repetitive peak reverse voltage is 1600 V. This SCR thyristor has an operating temperature range of -40 °C to 125 °C.
TME:
Module; thyristor/thyristor; 1.6kV; 116A; TO240AA; Ufmax:1.5V
Newark:
# IXYS SEMICONDUCTOR MCC95-16IO1B THYRISTOR, MODULE, 116A, 1.6KV, TO-240AA
额定电压DC 1.60 kV
负载电流 116 A
保持电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Screw
引脚数 7
封装 TO-240
长度 92 mm
宽度 20.8 mm
高度 30 mm
封装 TO-240
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Bulk
制造应用 Lighting, Power Management, 照明, Automation & Process Control, 电机驱动与控制, 自动化与过程控制, 电源管理, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCC95-16IO1B IXYS Semiconductor | 当前型号 | 当前型号 |
MCC95-16IO8B IXYS Semiconductor | 完全替代 | MCC95-16IO1B和MCC95-16IO8B的区别 |
MCC72-16IO1B IXYS Semiconductor | 类似代替 | MCC95-16IO1B和MCC72-16IO1B的区别 |
MCC94-20IO1B IXYS Semiconductor | 类似代替 | MCC95-16IO1B和MCC94-20IO1B的区别 |
