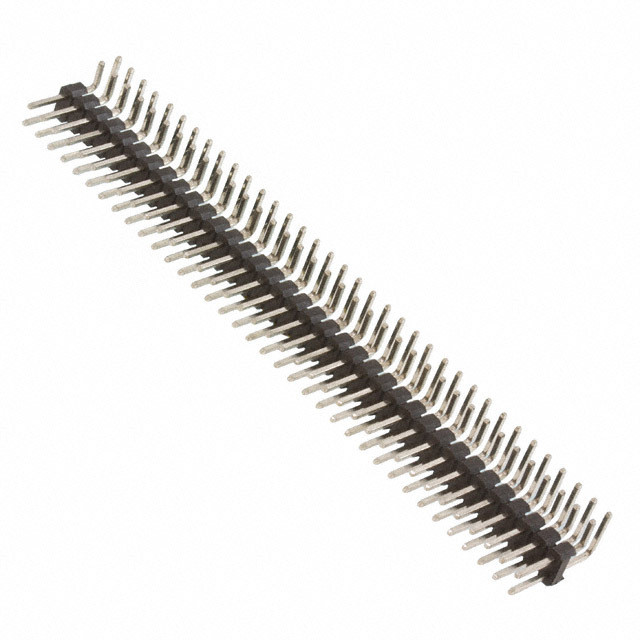

HARWIN M20-9953646 板至板连接, M20系列, 72 触点, 针座, 2.54 mm, 通孔安装, 2 排

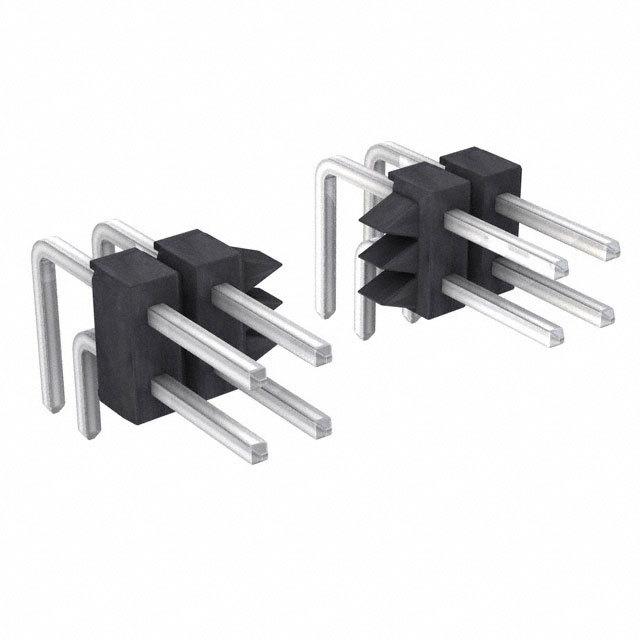

The is a 72-contact 2.54mm male DIL Board-to-board Pin Header with 100% tin over nickel plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 polyamide nylon 6T housing. The M20 series connector has 3mm PC tail, horizontal connector orientation and PC tail/through board connection type. It is suitable for use with 0.64mm square mating pin size. Suitable for interconnecting board to board.
触点数 72
极性 Male
触点电镀 Tin
额定电压AC 750 V
额定电流 3A/触头
绝缘电阻 10000 MΩ
排数 2
针脚数 72
接触电阻 20 mΩ
拔插次数 50
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 91.44 mm
宽度 13.44 mm
高度 5.08 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 商业, -, 工业, Industrial, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M20-9953646 Harwin | 当前型号 | 当前型号 |
68021-172HLF 安费诺 | 类似代替 | M20-9953646和68021-172HLF的区别 |
77317-804-72LF 法马通 | 功能相似 | M20-9953646和77317-804-72LF的区别 |
