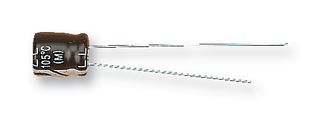

MULTICOMP MCMHR50V226M6.3X7 铝电解电容, MCMHR系列, 22 µF, ± 20%, 50 V, 6.3 mm, 径向引线
The MCMHR series capacitors are radial leaded, polarized aluminium electrolytic capacitors with 0.1µF to 470µF capacitance range. These capacitors have a short body length of 7mm. MCMHR series capacitors are most suitable for high density applications.
- .
- Rated voltage range from 6.3VDC to 63VDC
- .
- ±20% tolerance
- .
- Endurance is 1000h at 105°C
- .
- Operating temperature range -40°C to 105°C
- .
- Capacitor size varies from 4mm x 7mm to 8mm x 9mm D x L
额定电压DC 50.0 V
电容 22 µF
容差 ±20 %
产品系列 MCMHR
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 2.5 mm
高度 7 mm
直径 6.30 mm
封装 Radial, CAN
引脚间距 2.5 mm
介质材料 Aluminum Electrolytic
产品生命周期 Unknown
包装方式 Each
寿命（小时） 1000h @105℃
制造应用 电源管理, Portable Devices, Consumer Electronics, 工业, 便携式器材, 消费电子产品, Power Management, Industrial
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCMHR50V226M6.3X7 Multicomp | 当前型号 | 当前型号 |
50ML22MEFC8X5 Rubycon | 功能相似 | MCMHR50V226M6.3X7和50ML22MEFC8X5的区别 |
ECA1HAK220X 松下 | 功能相似 | MCMHR50V226M6.3X7和ECA1HAK220X的区别 |
ECEA1HKA220 松下 | 功能相似 | MCMHR50V226M6.3X7和ECEA1HKA220的区别 |
