DC- DC转换器控制电路 DC-DC CONVERTER CONTROL CIRCUITS
DESCRIPTION
The MC34063A/E series is a monolithic control circuit delivering the main functions for DC-DC voltage converting.
The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy.
Employing a minimum number of external components the MC34063A/E devices series is designed for Step-Down, Step-Up and Voltage-Inverting applications.
■ OUTPUT SWITCH CURRENT IN EXCESS OF 1.5A
■ 2% REFERENCE ACCURACY
■ LOW QUIESCENT CURRENT: 2.5mA TYP.
■ OPERATING FROM 3V TO 40V
■ FREQUENCY OPERATION TO 100KHz
■ ACTIVE CURRENT LIMITING
频率 33 kHz
工作电压 3V ~ 40V
额定功率 625 mW
输出接口数 1
输出电压 1.25.38 V
输出电流 1.5 A
通道数 1
输入电流 2.50 mA
耗散功率 625 mW
开关频率 100 kHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Max 38 V
输出电压Min 1.25 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 3.40 V
安装方式 Surface Mount
引脚数 8

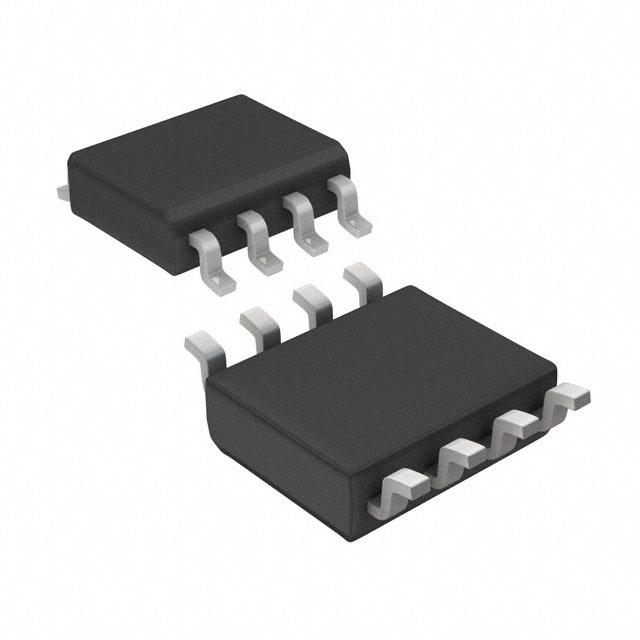

封装 SOP-8
封装 SOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC34063ABD ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
MC33063ADR 德州仪器 | 功能相似 | MC34063ABD和MC33063ADR的区别 |
MC34063ACD-TR 意法半导体 | 功能相似 | MC34063ABD和MC34063ACD-TR的区别 |
MC33063ADG 安森美 | 功能相似 | MC34063ABD和MC33063ADG的区别 |
