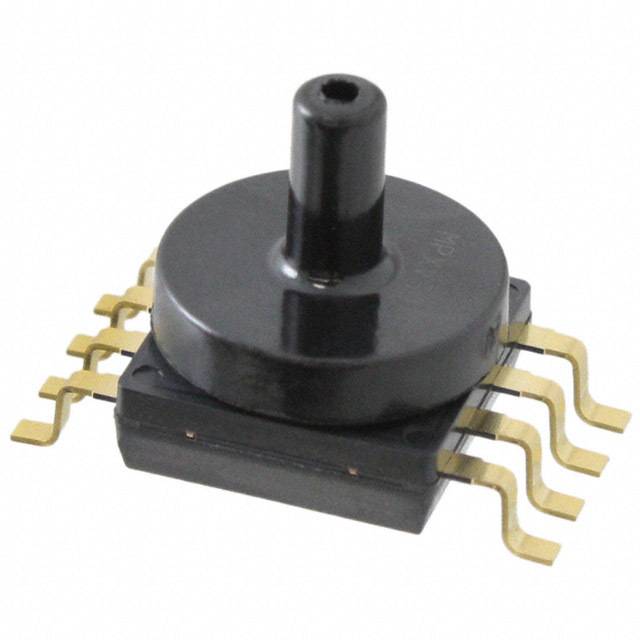

NXP MPXV5010GC6U 压力传感器, 计量器, 0 kPa, 10 kPa, 4.75 V, 5.25 V
The is a monolithic silicon Piezoresistive Pressure Sensor designed for a wide range of applications. This transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate, high level analogue output signal that is proportional to the applied pressure. The axial port has been modified to accommodate industrial grade tubing. The performance over-temperature is achieved by integrating the shear-stress strain gauge, temperature compensation, calibration and signal conditioning circuitry onto a single monolithic chip. The device operating characteristic and internal reliability and qualification tests are based on use of dry air as the pressure media. Media, other than dry air, may have adverse effects on sensor performance and long-term reliability.
电源电压DC 4.75V min
额定电压DC 4.70 V
无卤素状态 Not Halogen Free
输出电压 0.2V ~ 4.7V
供电电流 5.00 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±5 %
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
封装 SOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 Consumer Electronics, Automation & Process Control, 传感与仪器, 医用, Medical, HVAC, 消费电子产品, 自动化与过程控制, Sensing & Instrumentation, HVAC, Medical, Automation & Proce
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MPXV5010GC6U NXP 恩智浦 | 当前型号 | 当前型号 |
MPXV5010GC7U 恩智浦 | 完全替代 | MPXV5010GC6U和MPXV5010GC7U的区别 |
MPXV5010GC6T1 恩智浦 | 完全替代 | MPXV5010GC6U和MPXV5010GC6T1的区别 |
MPVZ5010G7U 恩智浦 | 完全替代 | MPXV5010GC6U和MPVZ5010G7U的区别 |
